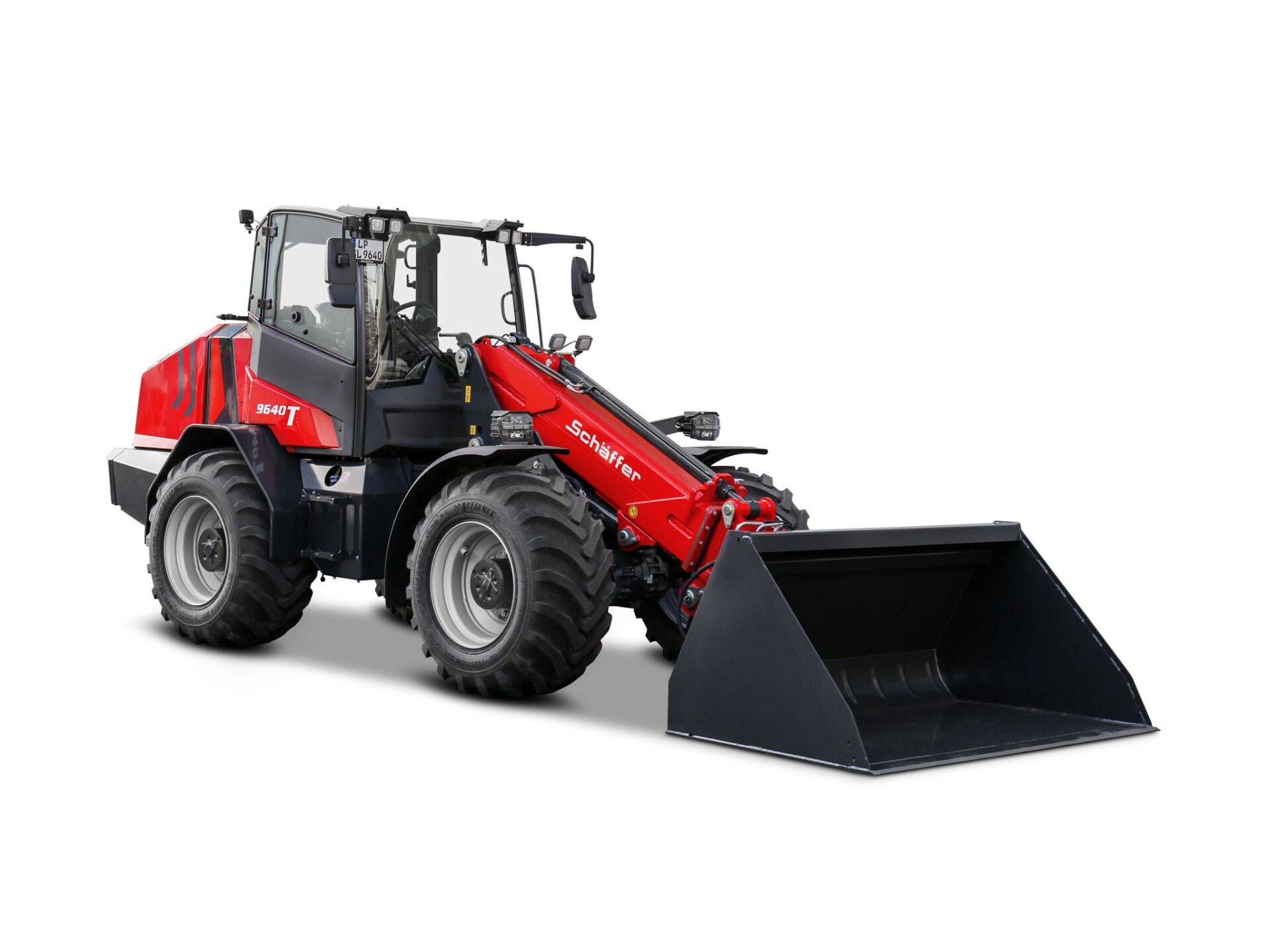

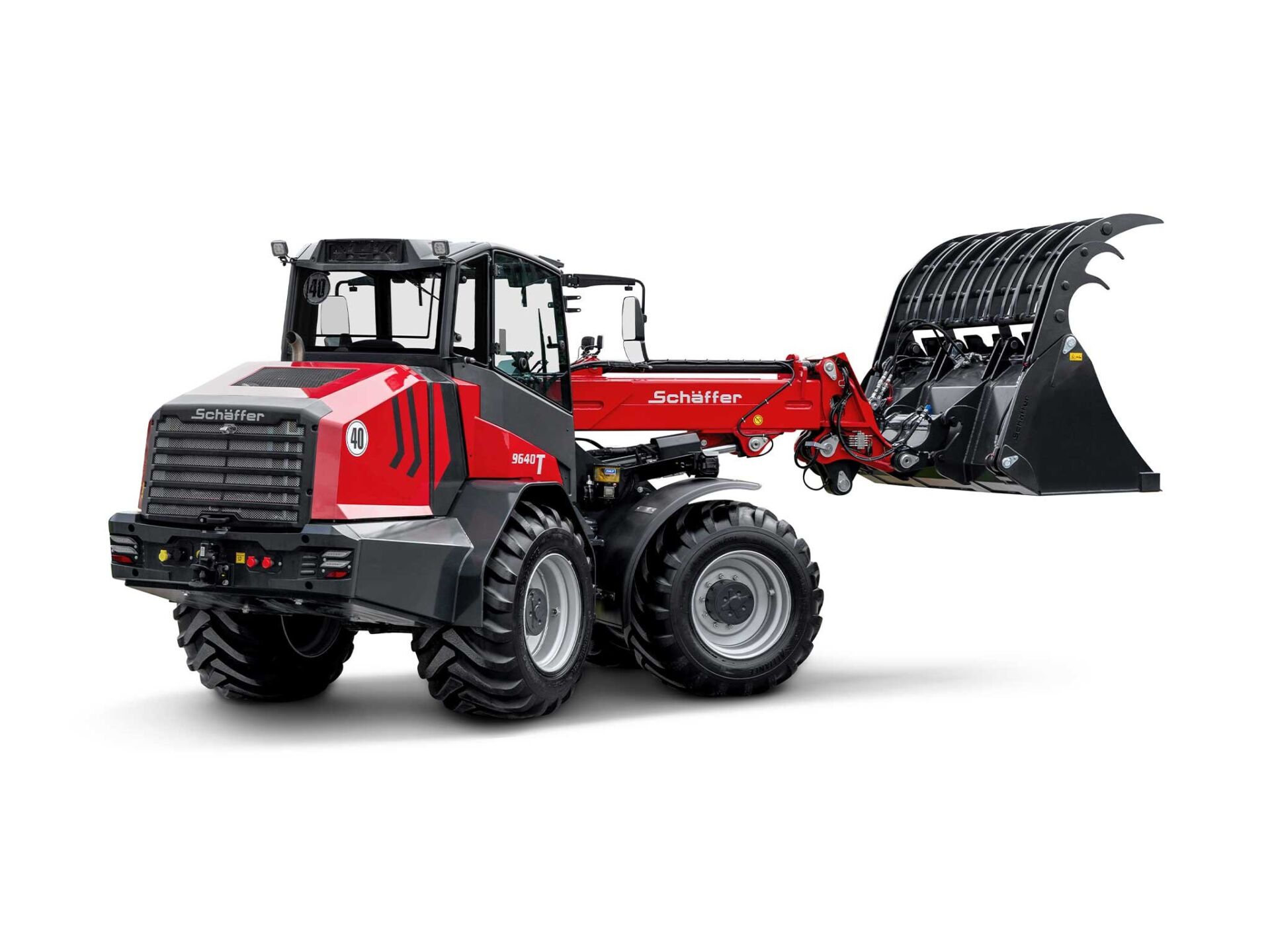

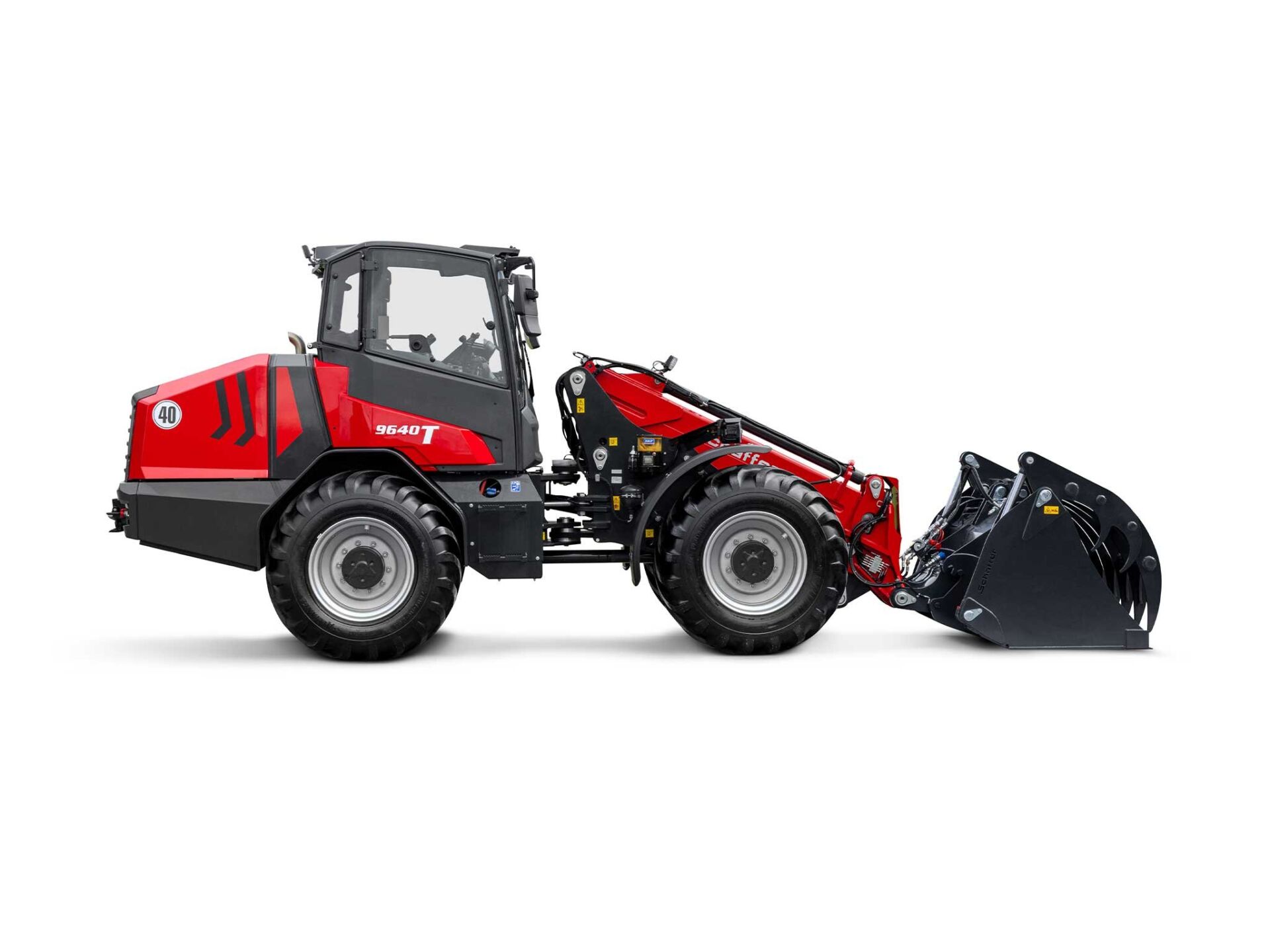

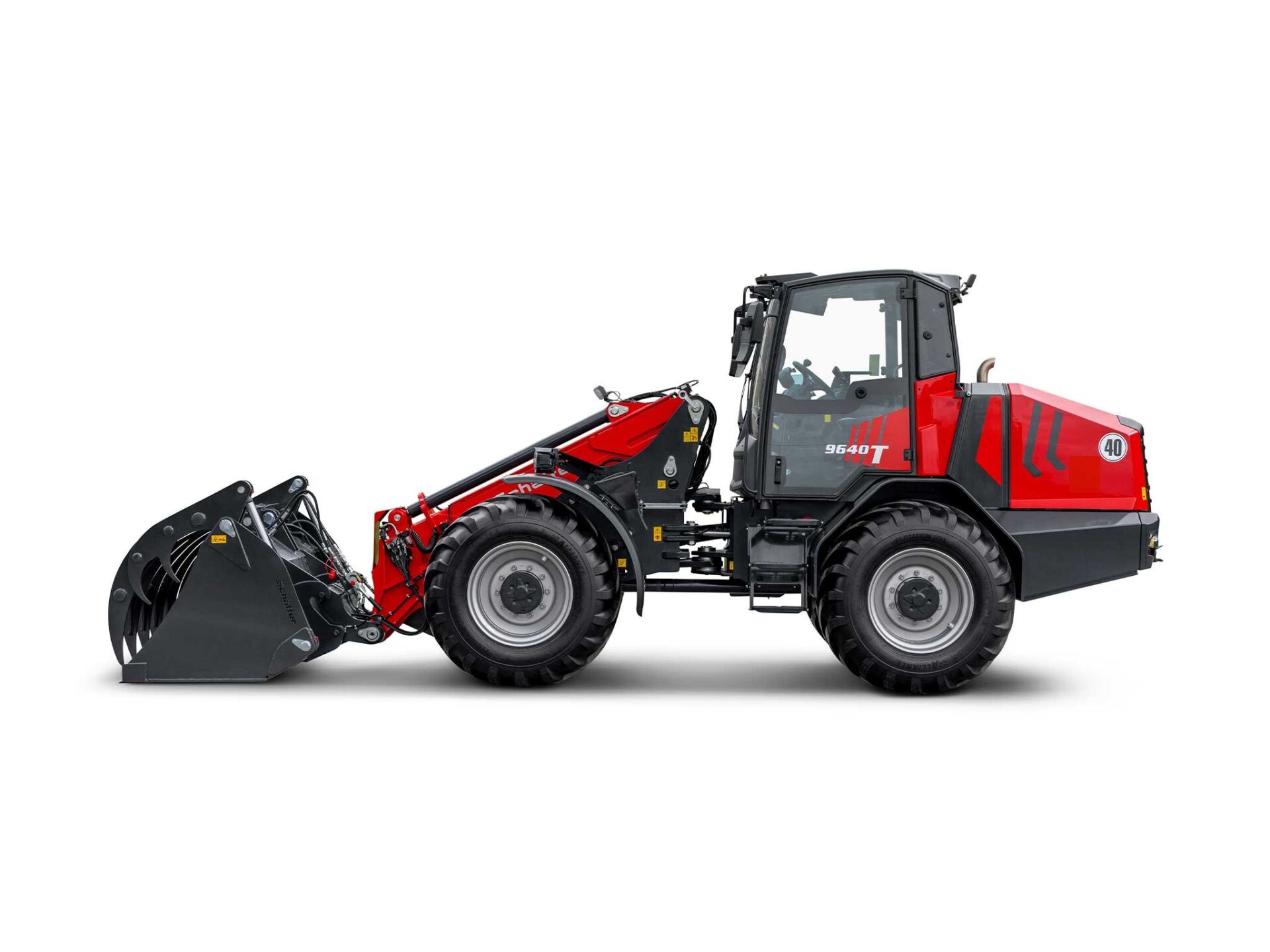

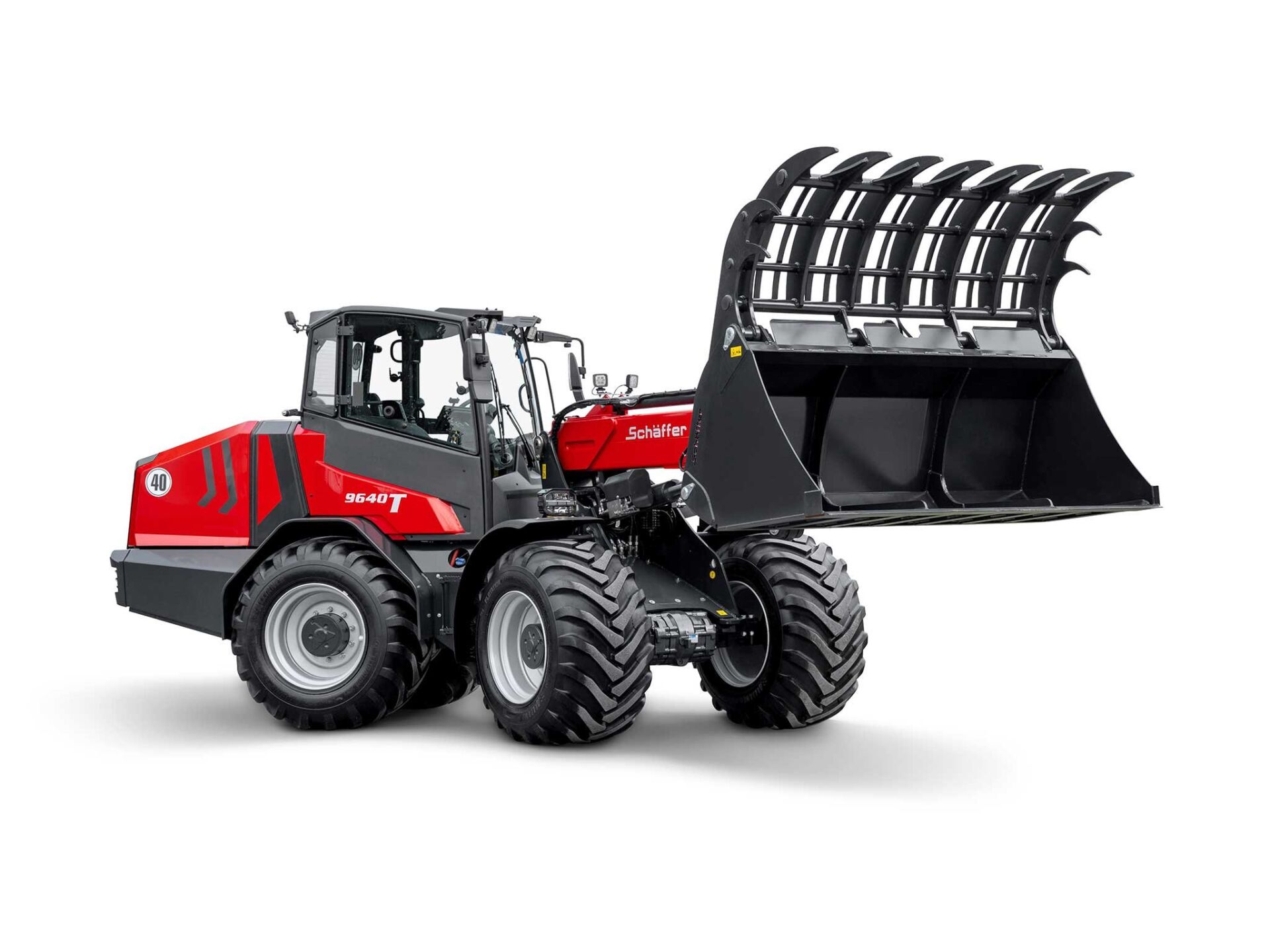

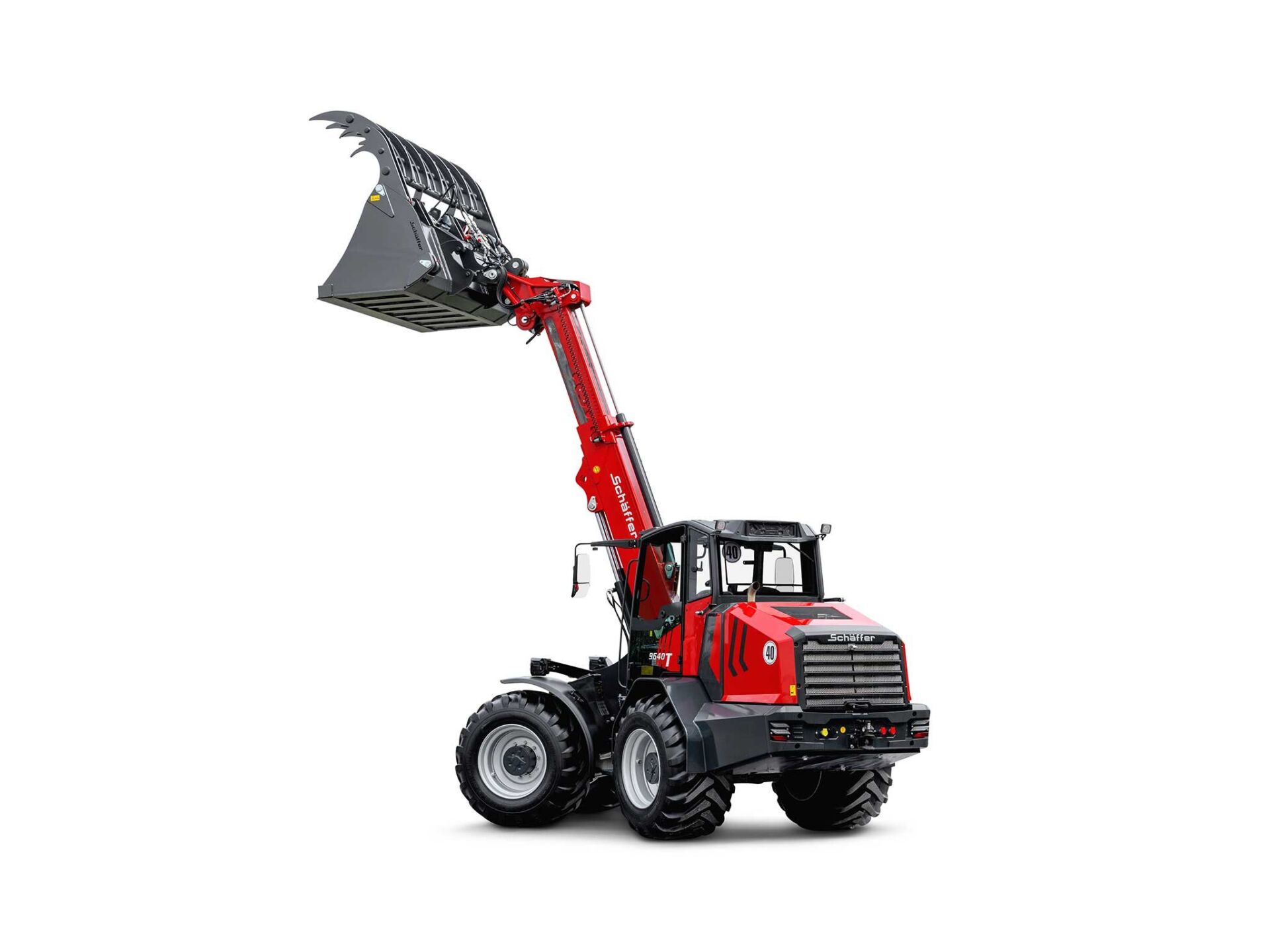

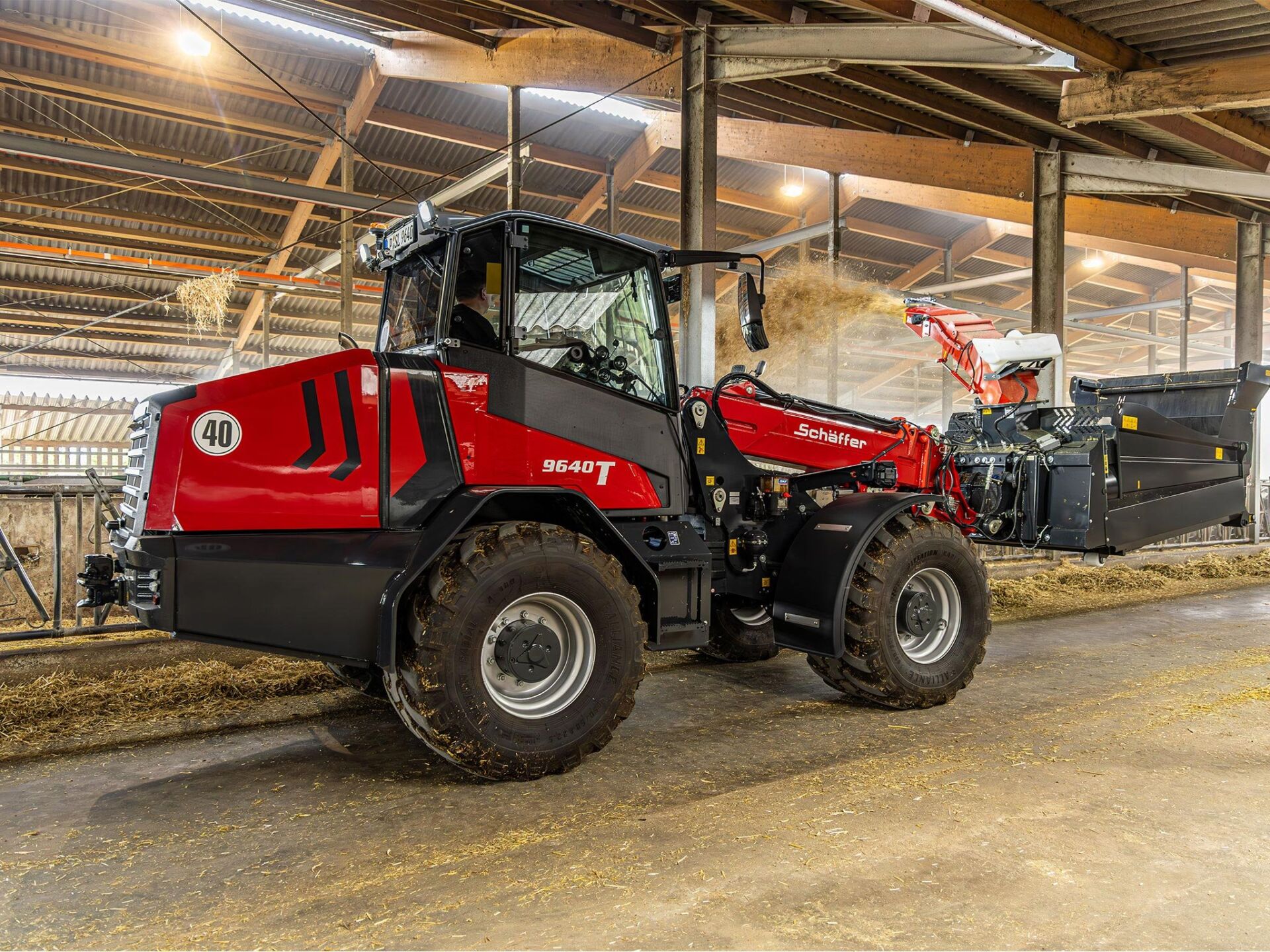

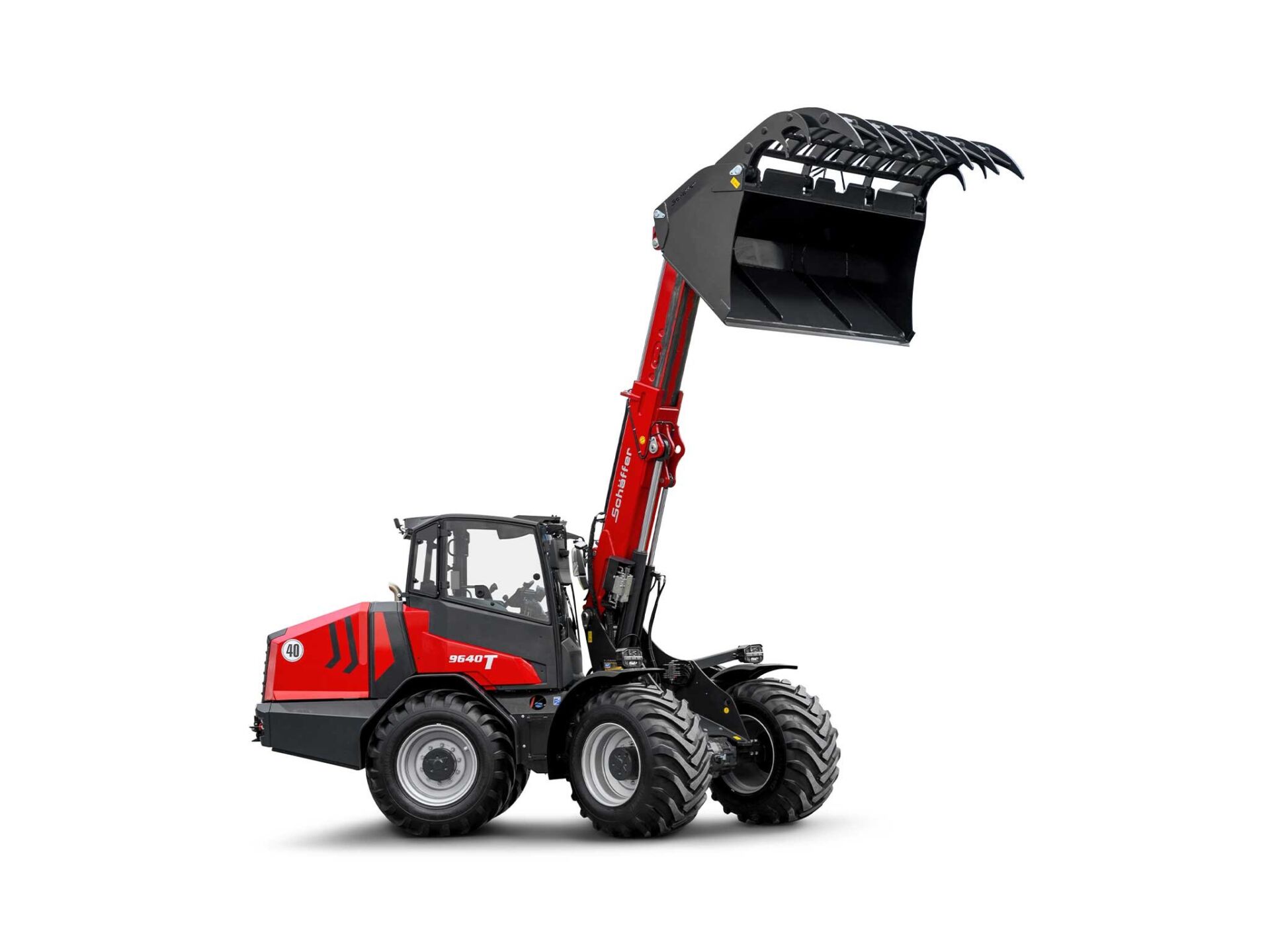

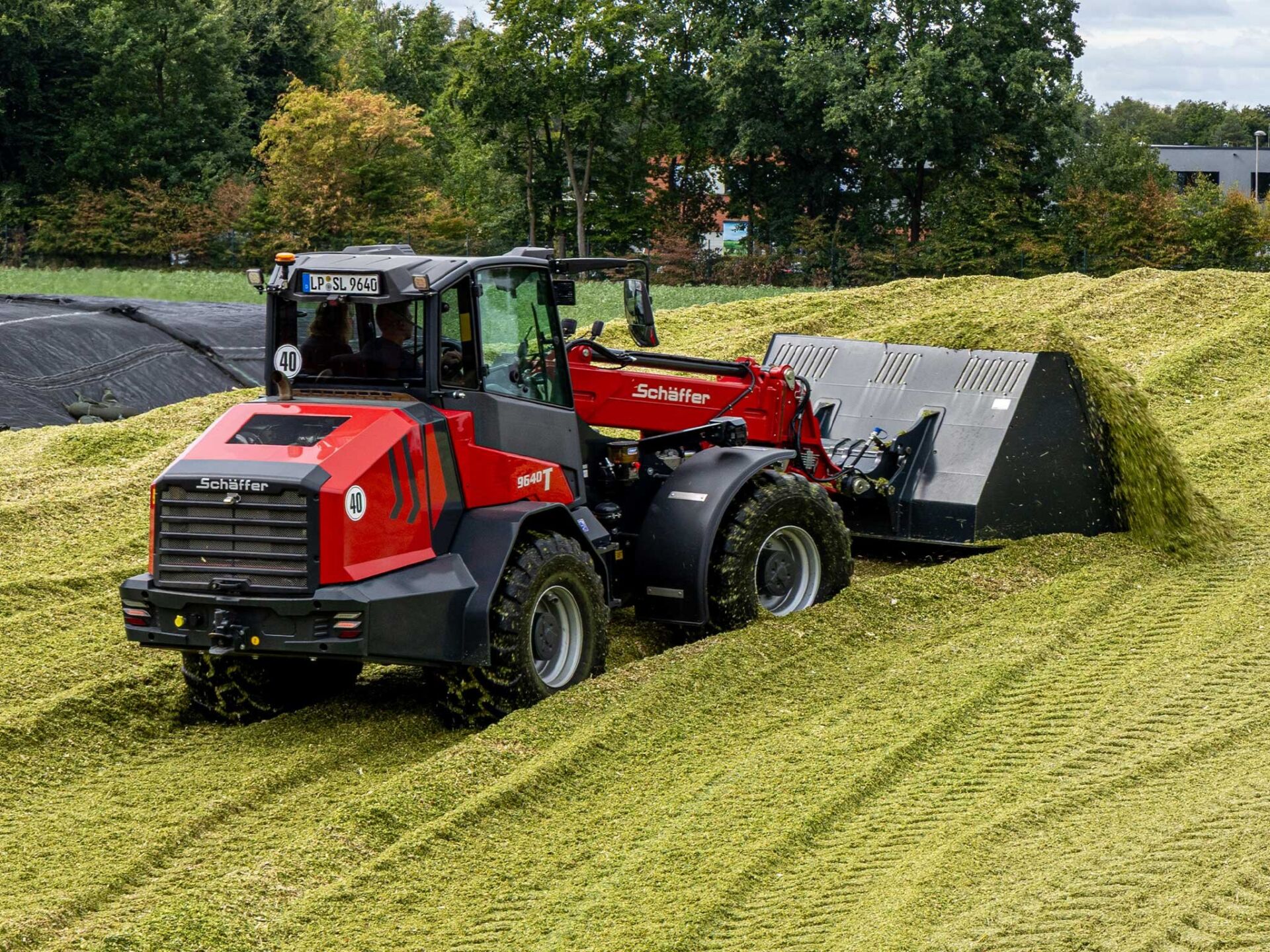

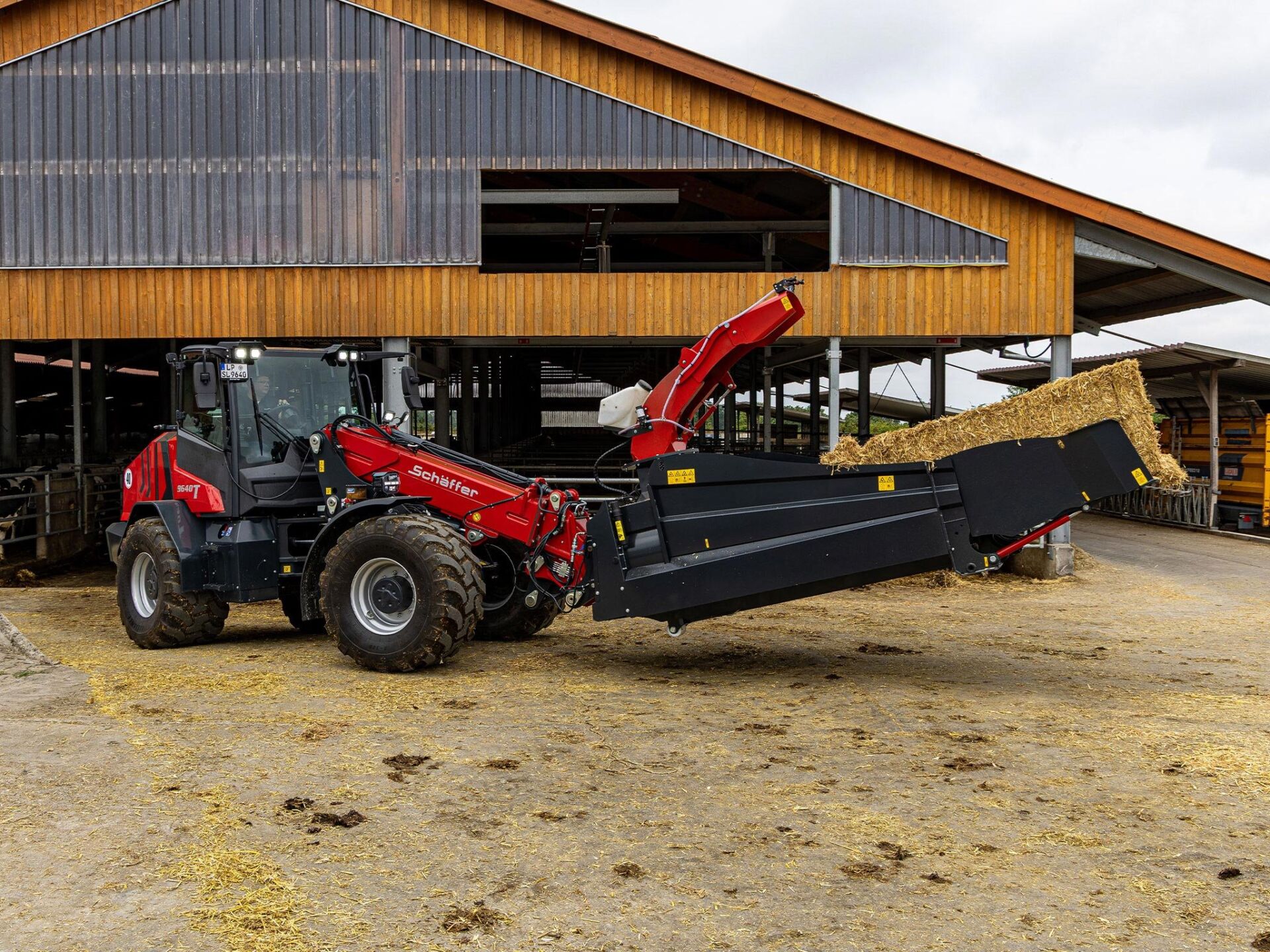

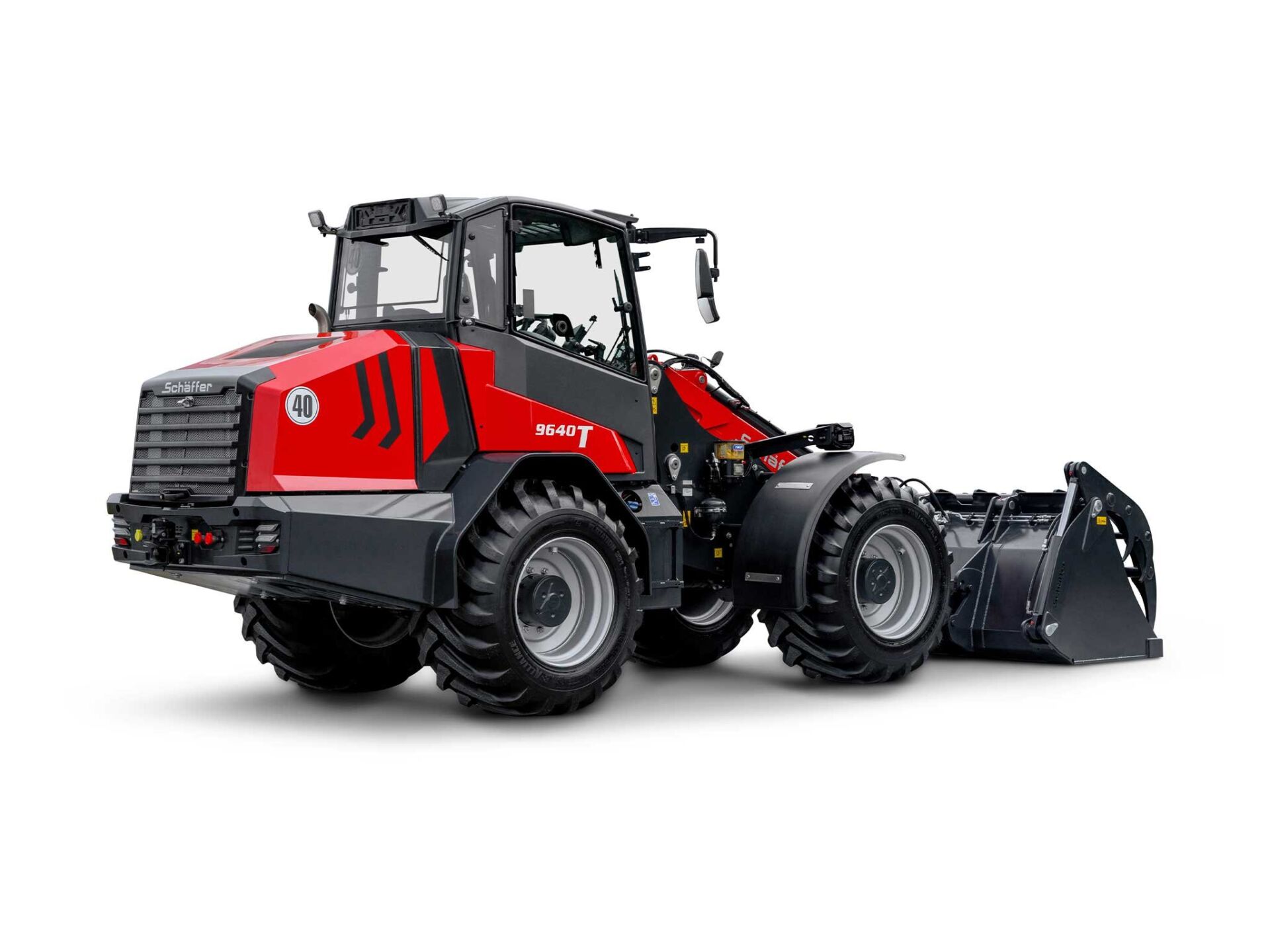

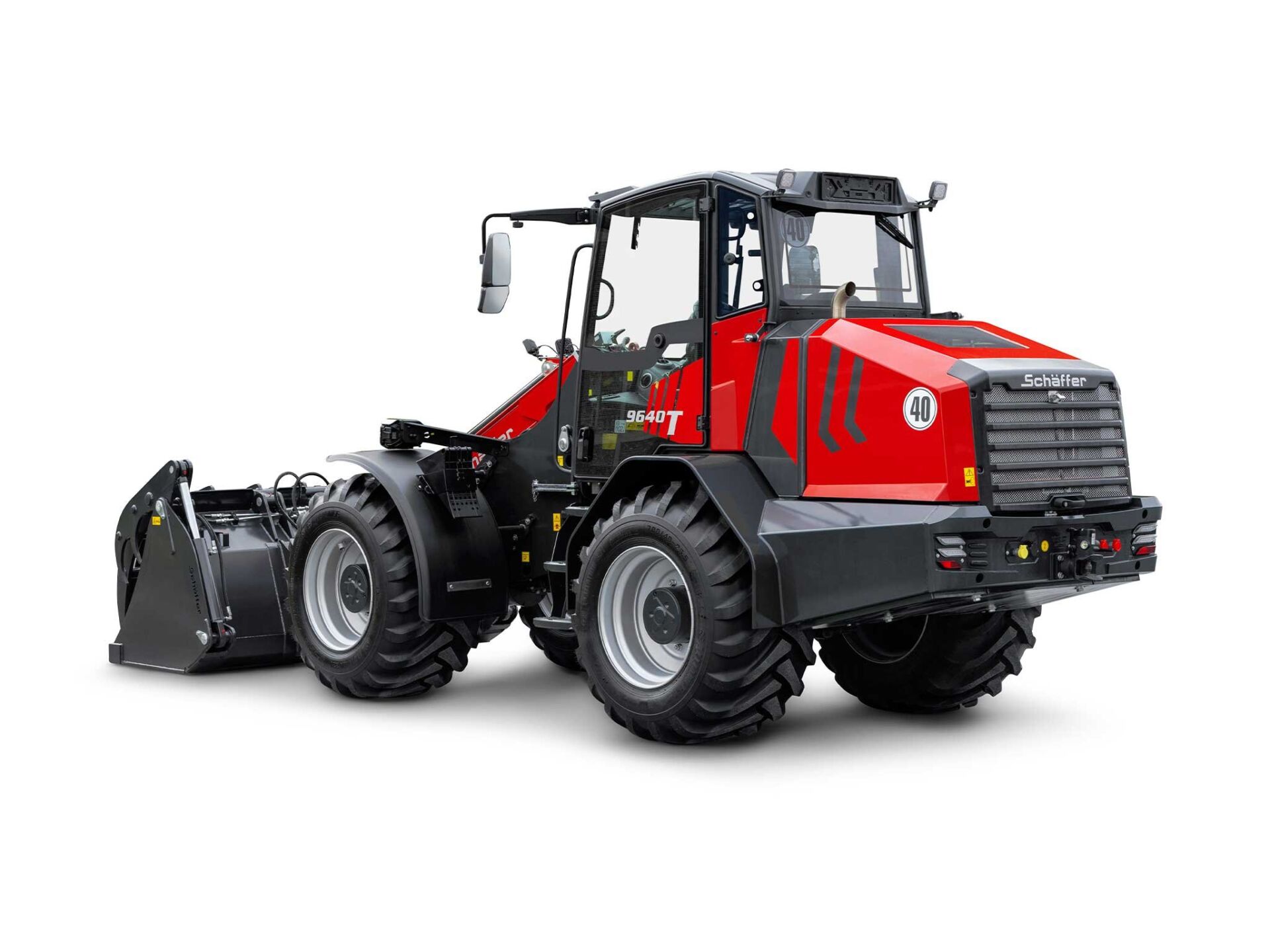

9640 T-3

TECHNICAL DATA

Ferro-form sliding elements in the telescopic arm
Headstock type wheel loader with hydraulic tool lock
Comfort Cab PLUS
10″ touch screen, mobile phone holder
Radio preparation
Electronic SRS joystick (aggressive, smooth)
Selectable user profiles of the working hydraulics (fast, medium, slow)
Steering column adjustable in height and tilt by foot pedal
LED working headlights: 2 x front, 1 x rear
Lighting system without ABE (General approval certificate) according to ordinance StVZO
Sockets: USB-A and USB-C, 3-pin Euro, 12 V vehicle
Soft touch operating station for working lights and windscreen wipers

Rear window heater
Wide-angle and close-up mirrors
Flow sharing working hydraulics incl. proportional control of the telescopic arm
Load-Sensing working hydraulics, 172 l/min.
Dynamic load moment control according to DIN EN474-3
Additional control unit can be operated electropropotionally using the joystick
Electric locking latch for additional control unit on both sides
Switchable end-position cushioning of the cylinders (stroke, tool, tele)
Electric pressure relief of hydraulic couplings (on the steering tower and telescopic arm)
Depressurised return
Telescopic arm comfort control (bucket-shake function, return to dig / return to position, bucket dump assist)
Oil volume regulation for AUX hydraulic functions

Engine
- Type: 4-cylinder diesel engine Deutz TCD 3.6
- Output: 105 kW (143 HP)
- Exhaust gas treatment / emission level: DOC, DPF, SCR / V
Tyres
- Standard tyres: 460/70R24 AS, ET-50
- Option I: 500/70R24 AS, ET-50
- Option II: 600/50-26.5 AS, ET0
- Option III: 700/40-26.5 AS, ET+50
Electric system
- Operating voltage: 12 V
Dimensions
- (A) Wheelbase: 2,615 mm
- (B) Chassis length: 5,452 mm
- (C) Overall length with standard bucket: 6,260 mm
- (D) Digging depth: 70 mm
- (E) Reach: 2,860 mm
- (F) Swivelling point, telescopic arm retracted: 4,100 mm
- (G) Loading height with pallet forks: 5,178 mm
- (H) Max. dumping height: 4,574 mm
- (I) Front end height: 1,960 mm
- (J) Dumping width: 740 mm
- (K) Seat height: 1,650 mm
- (L) Cab height: 2,830 mm
- (M) Max. bucket pivot point: 5,400 mm
- (N) Overall width / option: 2,340 / 2,330 – 2,380 mm
- (O) Inner turning radius: 2,220 mm
- (P) Outer turning radius: 4,560 mm
- (Q) Outer radius with standard bucket: 5,110 mm

Drive
- Traction hydraulics: Hydrostatic-automotive
- Axles: ZF HD axles, 10-hole rim; planetary final drive and automatic slip-control differential, swing axle at rear
- Speed / option: 0 – 20 kph in 2 gears switchable under load / 0 – 40 kph
Brakes and steering
- Service braking system: Combined brake hydrostatic and multi-disc brake
- Parking brake: Multi-disc brake running in oil bath
- Steering: Fully hydraulic articulated steering
Tank capacity
- Fuel: 150 l
- Hydraulic oil: 130 l

Working hydraulics
- Delivery rate: 172 l/min
- Operat. pressure: 220 bar
Weights
- Operating weight cabin incl. Original tyres, driver and standard bucket: 8,400 – 9,700 kg
- Lifting capacity: 4,200 kg
- Tipping load, straight, pallet fork acc. to ISO 14397: 5,940 kg
Sounds and vibration
- Sound pressure level LpA: 71 db(A)
- Sound power level guaranteed LwA: 102 db(A)
- Sound power level equivalent LwA: 102 db(A)
- Hand/arm vibration acc. to ISO 8041: <2,5 m/s²
- Total body vibration acc. to ISO 8041: <0,5 m/s²
