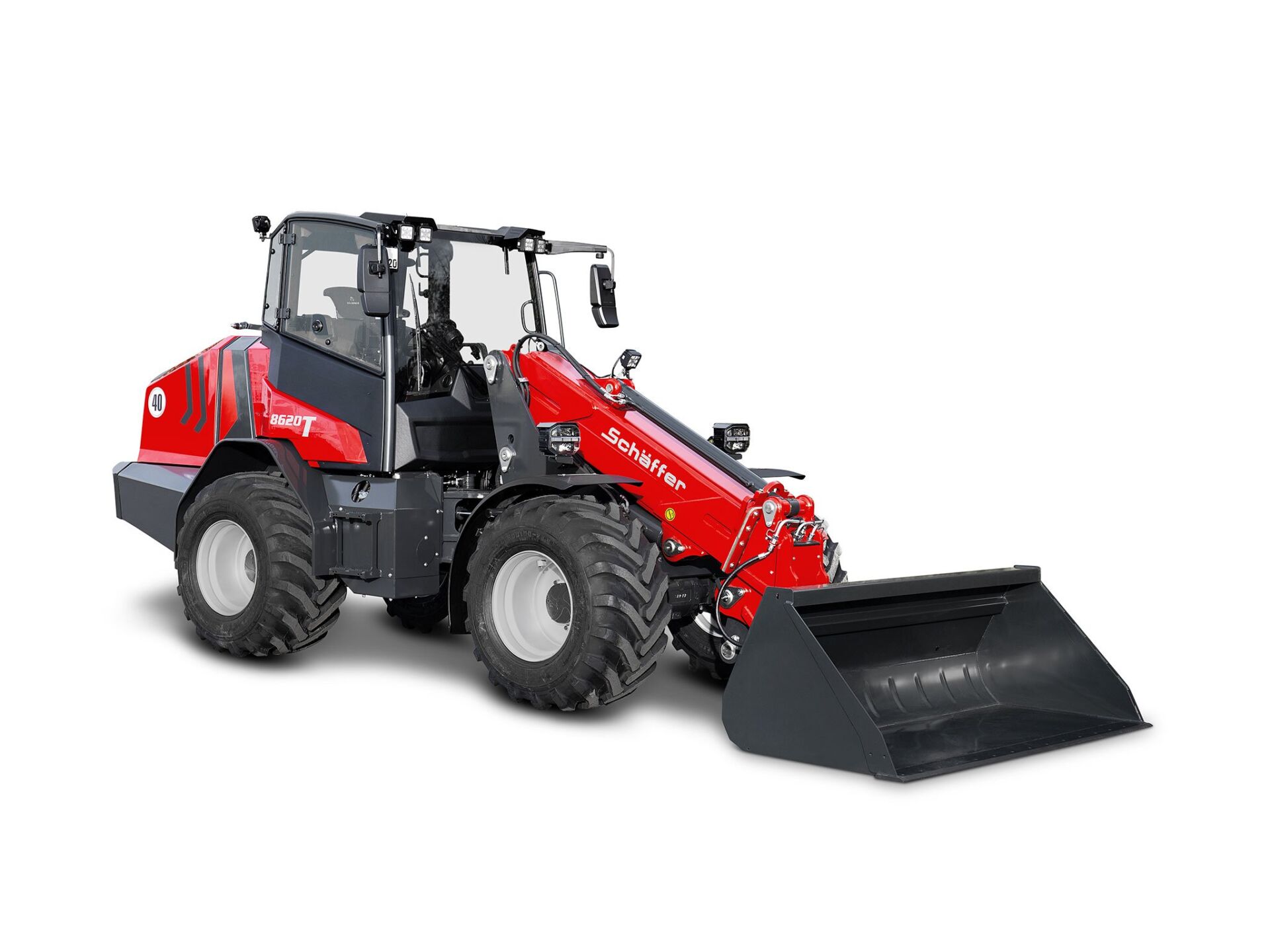

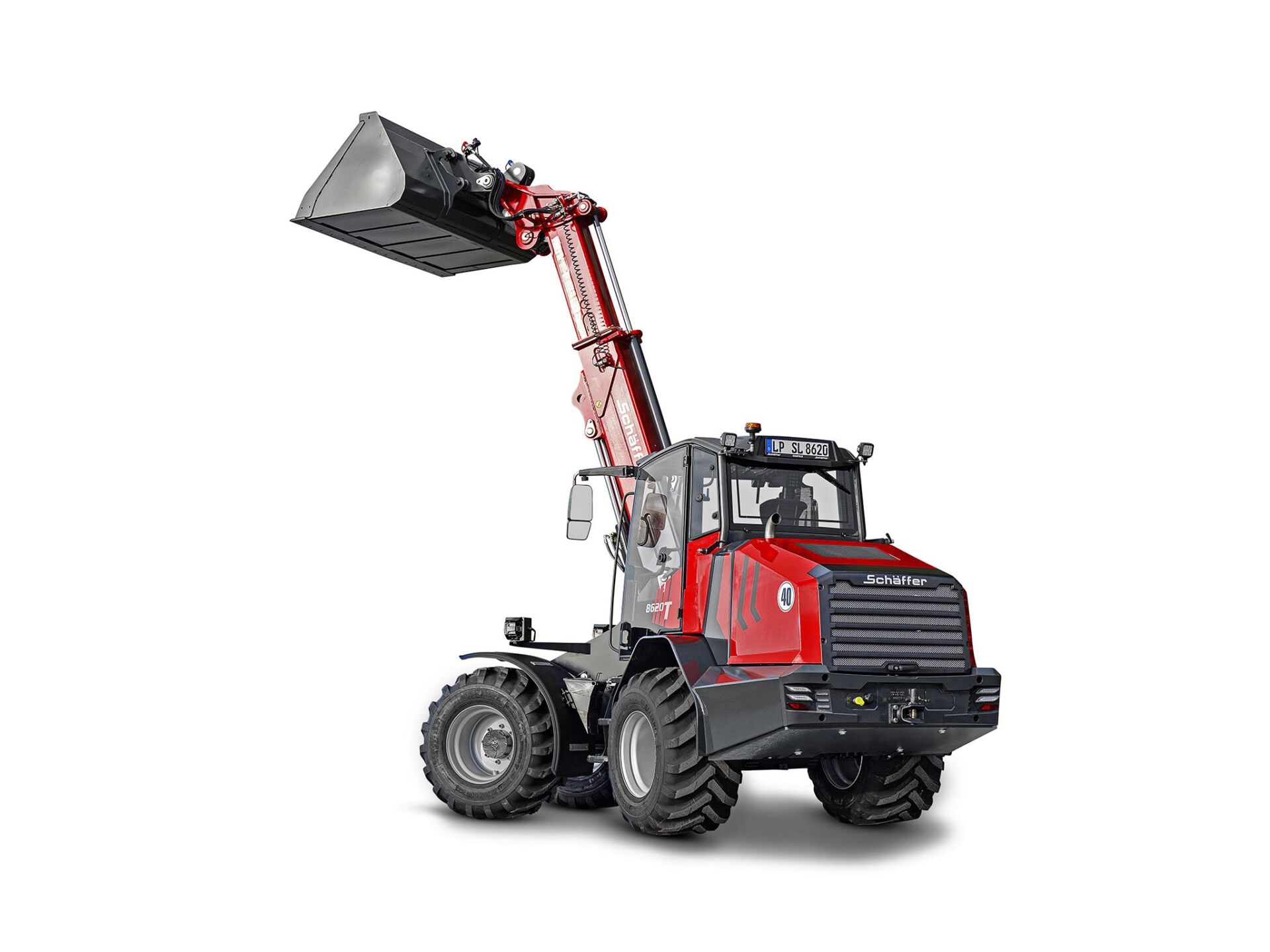

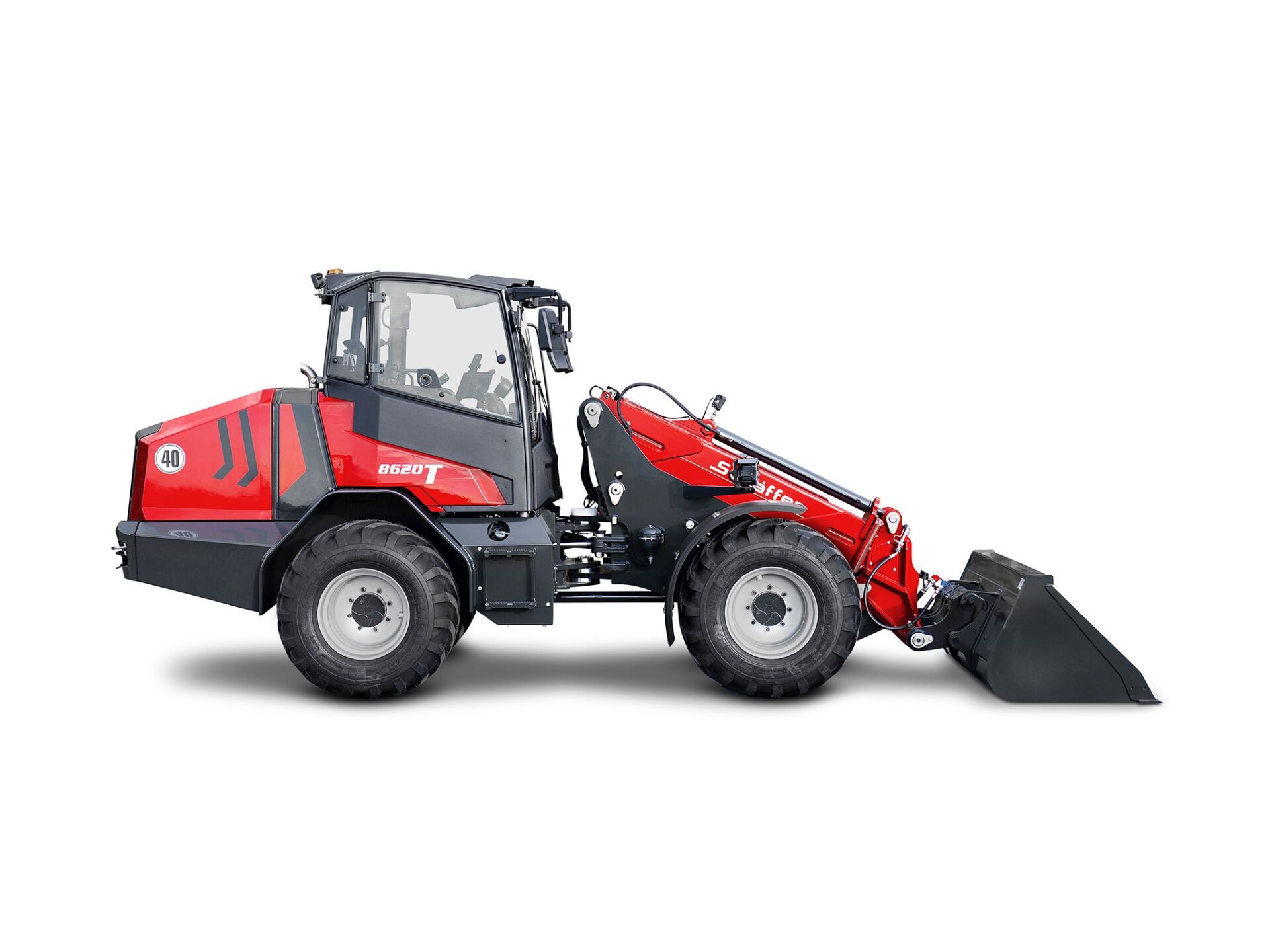

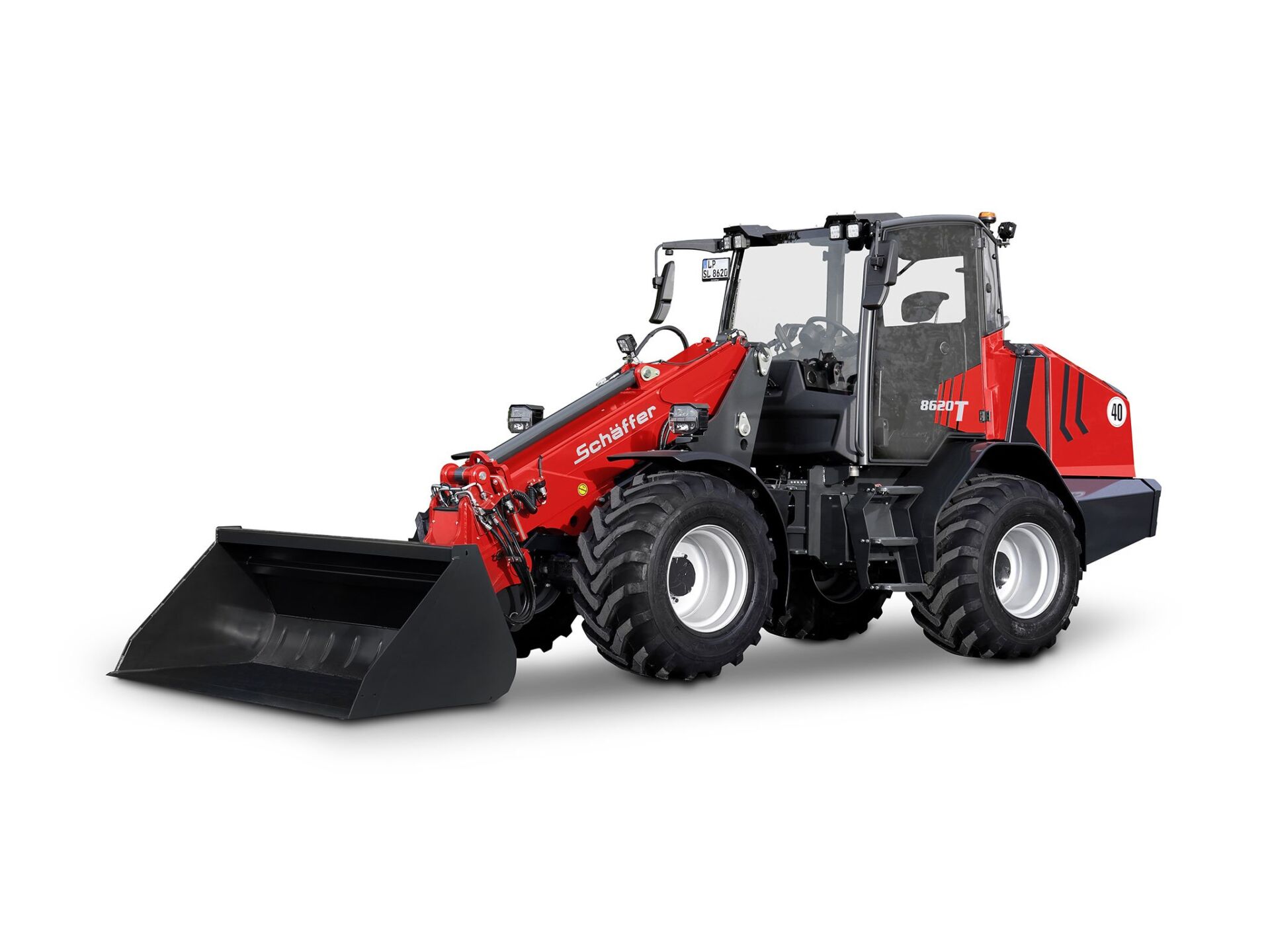

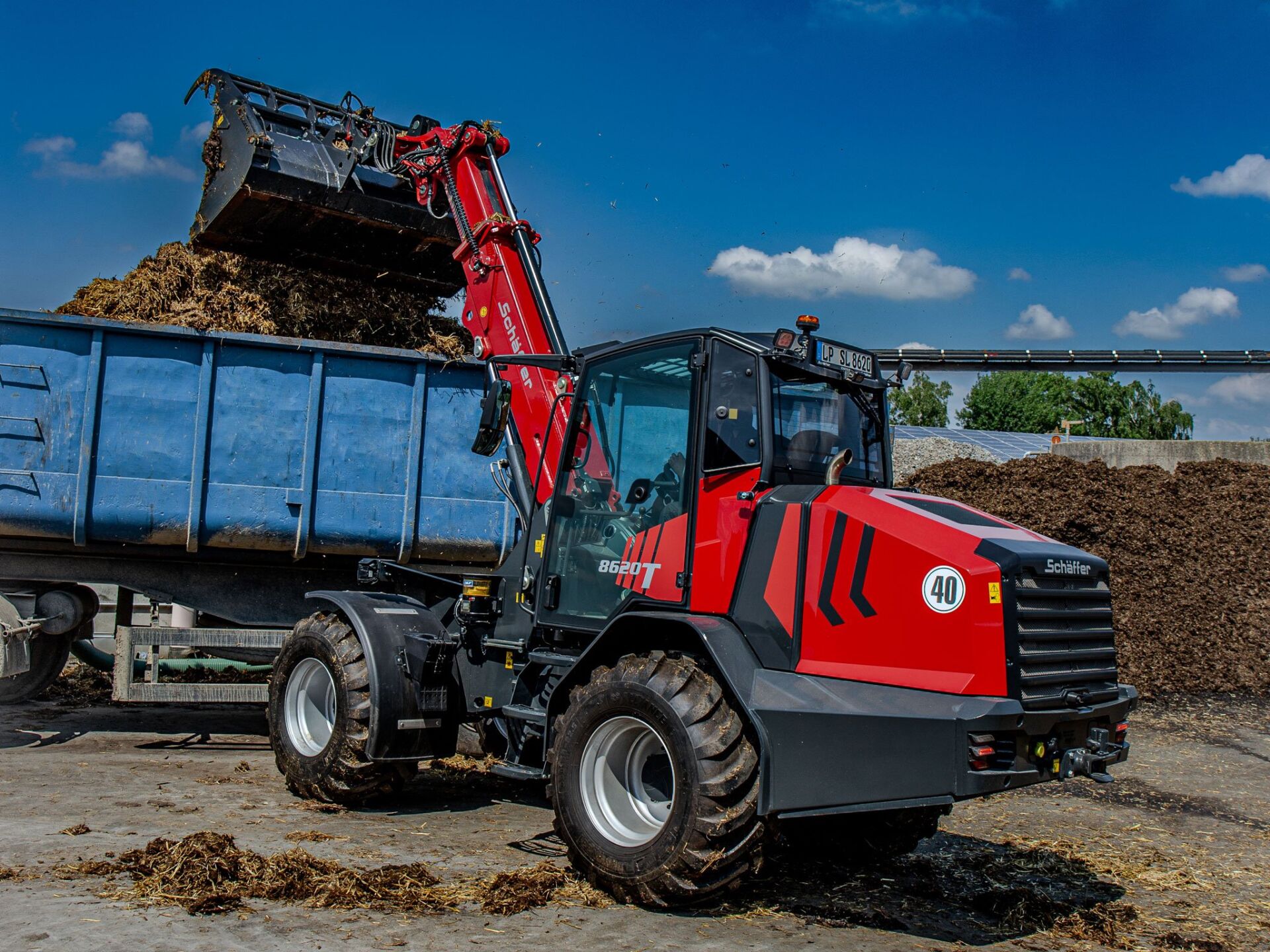

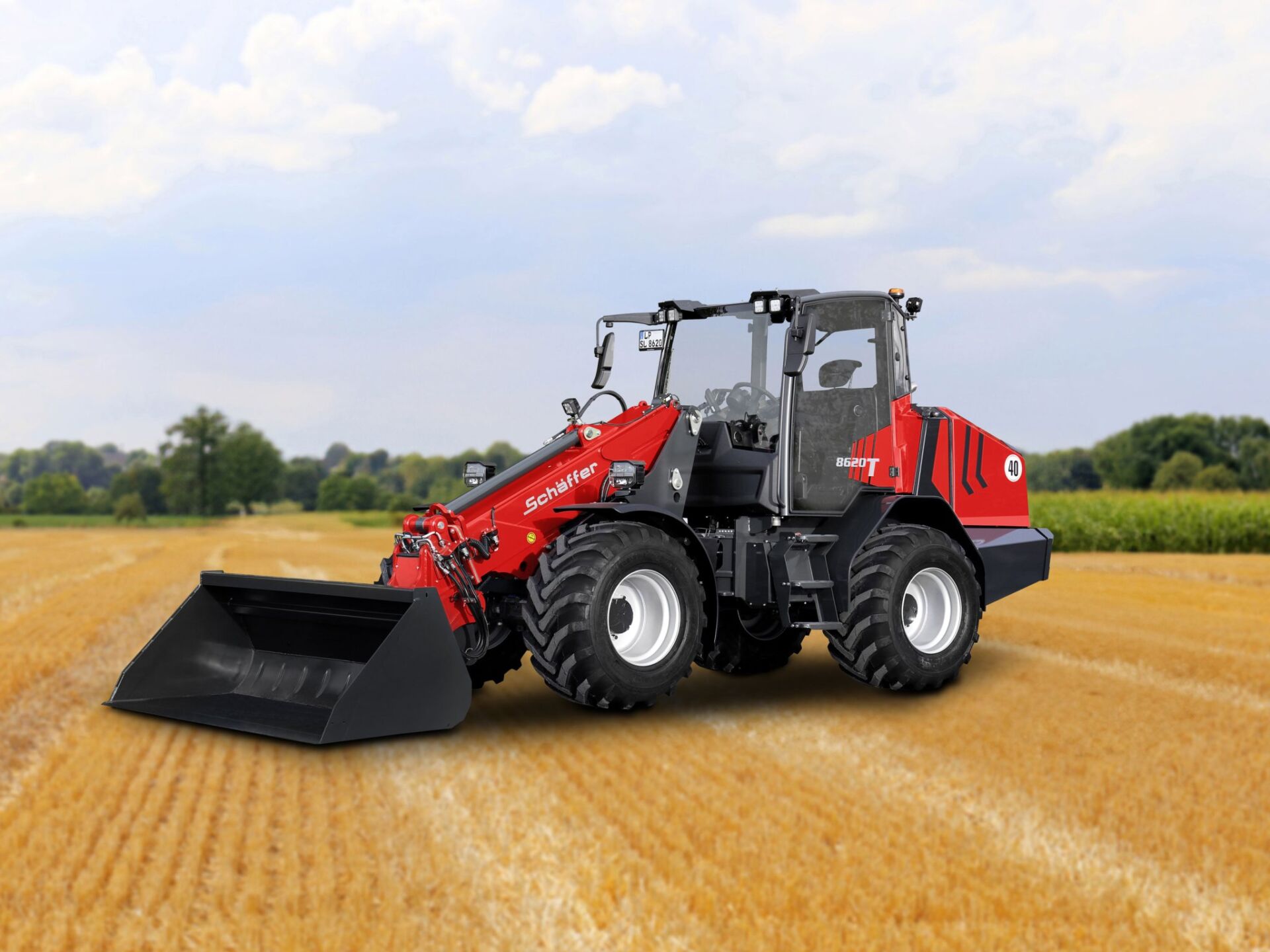

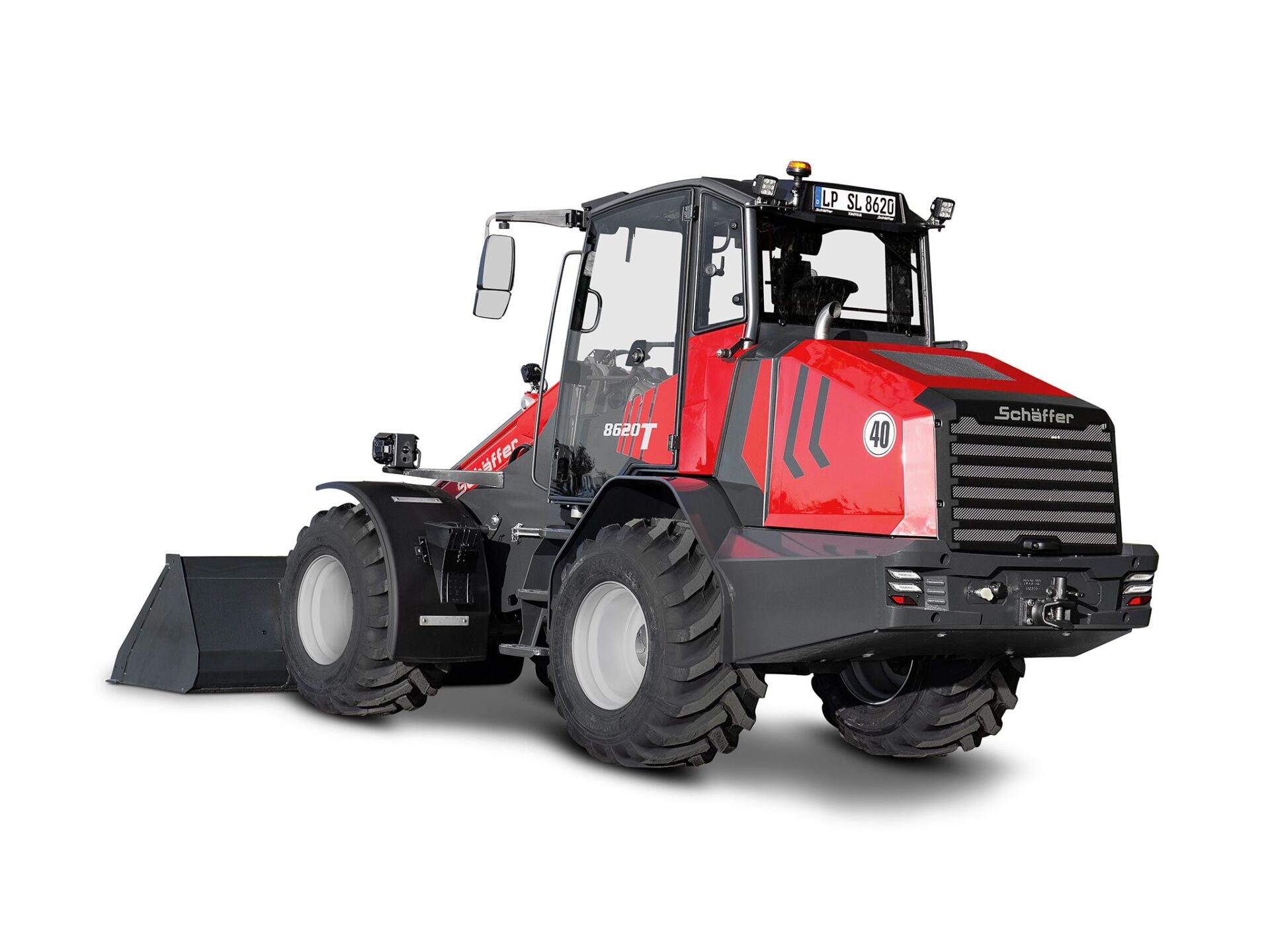

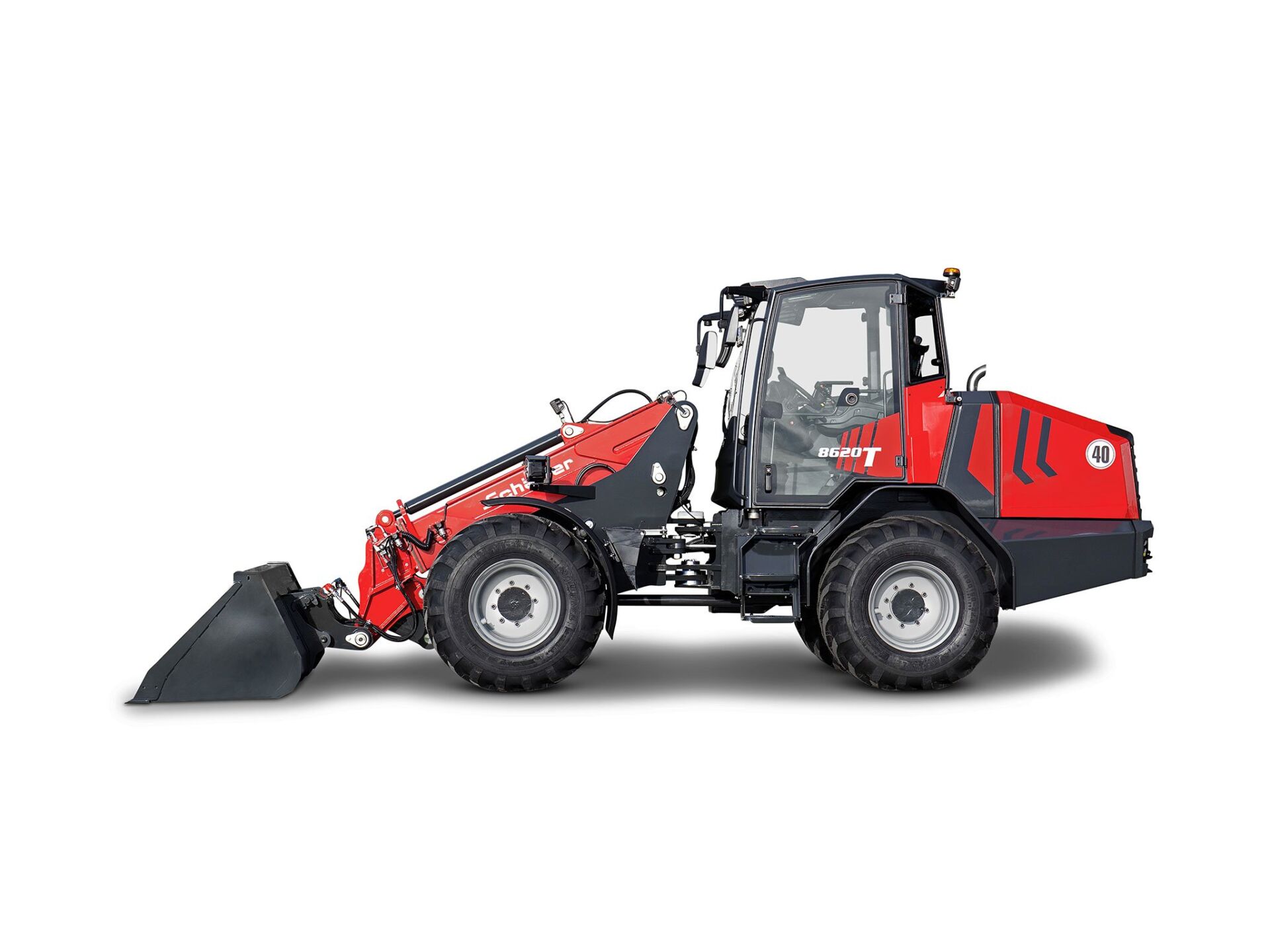

8620 T-3

TECHNICAL DATA

Ferro-form sliding elements in the telescopic arm
Headstock type wheel loader with hydraulic tool lock

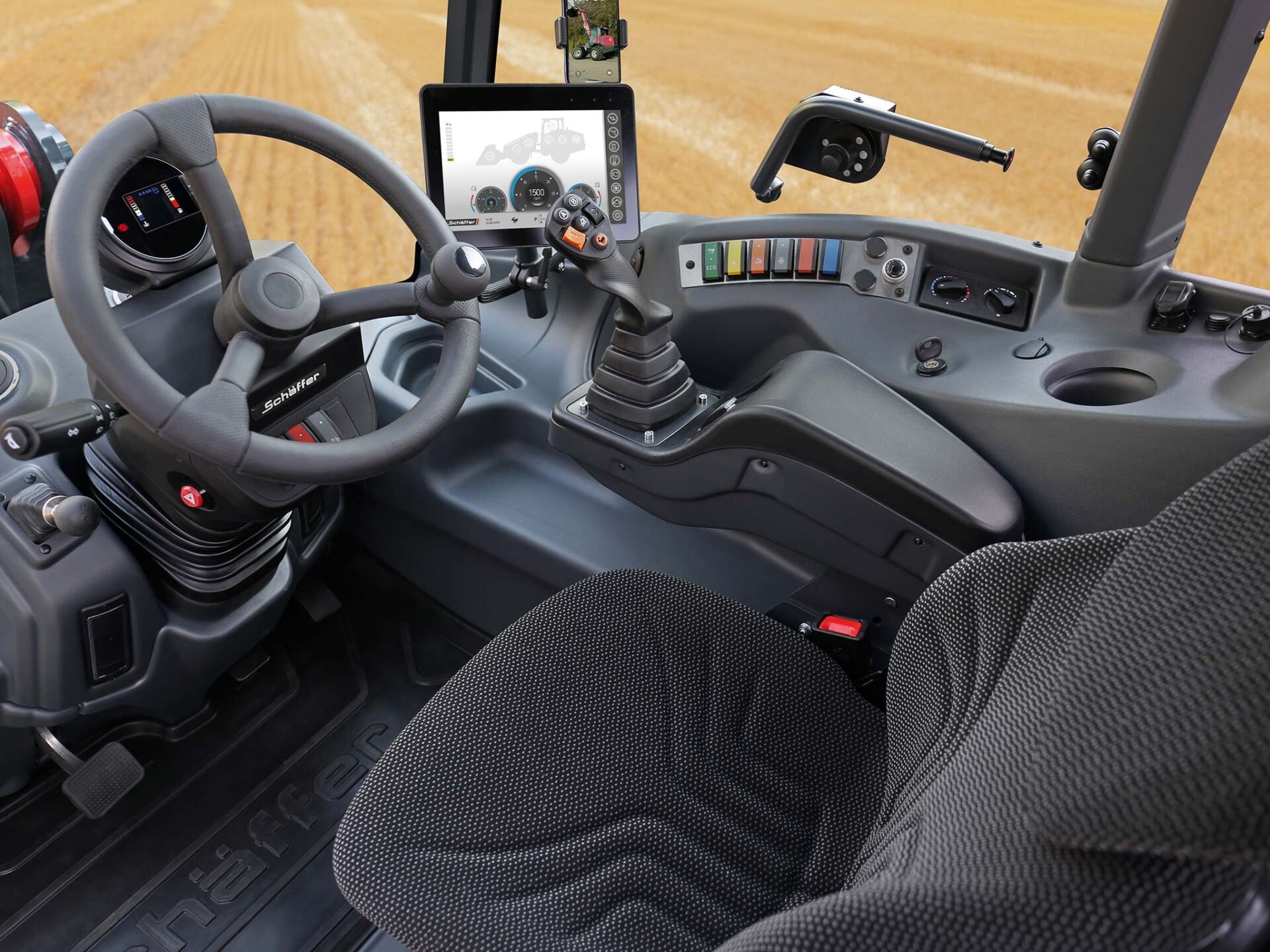

Comfort Cab PLUS
10″ touch screen, mobile phone holder
Radio preparation
Electronic SRS joystick (aggressive, smooth)
Selectable user profiles of the working hydraulics (fast, medium, slow)
Steering column adjustable in height and tilt by foot pedal
LED working headlights: 2 x front, 1 x rear
Lighting system without ABE (General approval certificate) according to ordinance StVZO
Sockets: USB-A and USB-C, 3-pin Euro, 12 V vehicle
Soft touch operating station for working lights and windscreen wipers
Rear window heater

Wide-angle and close-up mirrors
Flow-Sharing Working hydraulics 125 l/min, Option: 172 l/min (Load Sensing)
Dynamic load moment control according to DIN EN474-3
Additional control unit can be operated electropropotionally using the joystick
Electric locking latch for additional control unit on both sides
Switchable end-position cushioning of the cylinders (stroke, tool, tele)
Electric pressure relief of hydraulic couplings (on the steering tower and telescopic arm)
Depressurised return
Adaptive engine speed increase
Telescopic arm comfort control (bucket-shake function, return to dig / return to position, bucket dump assist)
Oil volume regulation for AUX hydraulic functions

Engine
- Type: 4-cylinder diesel engine Deutz TCD 3.6
- Output: 75 kW (102 HP) / 95 kW (129 HP)
- Exhaust gas treatment / emission level: DOC, DPF, SCR / V
Tyres
- Standard tyres: 18-22.5 AS MP590 ET0
- Option I: 400/70-20 AS
- Option II: 500/60-22.5 AS
- Option III: 600/40-22.5 AS
Electric system
- Operating voltage: 12 V
Dimensions
- (A) Wheelbase: 2,535 mm
- (B) Chassis length: 5,114 mm
- (C) Overall length with standard bucket: 6,031 mm
- (D) Digging depth: 75 mm
- (E) Max. working height: 2,660 mm
- (F) Swivelling point, telescopic arm retracted: 4,085 mm
- (G) Loading height with pallet forks: 4,960 mm
- (H) Max. dumping height: 4,350 mm
- (I) Front end height: 1,910 mm
- (J) Dumping width: 650 mm
- (K) Seat height: 1,660 mm
- (L) Cab height: 2,770 mm
- (M) Max. bucket pivot point: 5,200 mm
- (N) Overall width / option: 2,105 / 2,060 – 2,260 mm
- (O) Inner turning radius: 2,310 mm
- (P) Outer turning radius: 4,390 mm
- (Q) Outer radius with standard bucket: 4,920 mm

Drive
- Traction hydraulics: Hydrostatic-automotive
- Axles: HD axles, 10-hole rim; planetary final drive and automatic slip-control differential, swing axle at rear
- Speed / option: 0 – 20 kph in 2 gears switchable under load / 0 – 40 kph
Brakes and steering
- Service braking system: Combined brake hydrostatic and multi-disc brake
- Parking brake: Multi-disc brake running in oil bath
- Steering: Fully hydraulic articulated steering
Tank capacity
- Fuel: 150 l
- Hydraulic oil: 130 l

Working hydraulics
- Delivery rate: from 125 l/min
- Operat. pressure: 220 bar
Weights
- Operating weight cabin incl. Original tyres, driver and standard bucket: 7,050 – 7,950 kg
- Lifting capacity: 4,200 kg
- Tipping load, straight, pallet fork acc. to ISO 14397: 5,480 kg
Sounds and vibration
- Sound pressure level LpA: 71 db(A)
- Sound power level guaranteed LwA: 102 db(A)
- Sound power level equivalent LwA: 101 db(A)
- Hand/arm vibration acc. to ISO 8041: <2,5 m/s²
- Total body vibration acc. to ISO 8041: <0,5 m/s²

Dimension	Diameter (mm) / Width (mm)	Rim offset	Loader width (mm)	Tread	Tread options
400/70-20* 400/70R20*	1,075 / 400	0	2,060	AS	MPT A608, Bibload
18-22.5	1,175 / 445	0	2,105	AS
18-22.5	1,175 / 445	-50	2,205	AS
500/60-22.5	1,180 / 500	0	2,160	AS	Ridemax FL693M
600/40-22.5*	1,060 / 600	0	2,260	AS
600/50-22.5	1,180 / 600	0	2,260	AS
