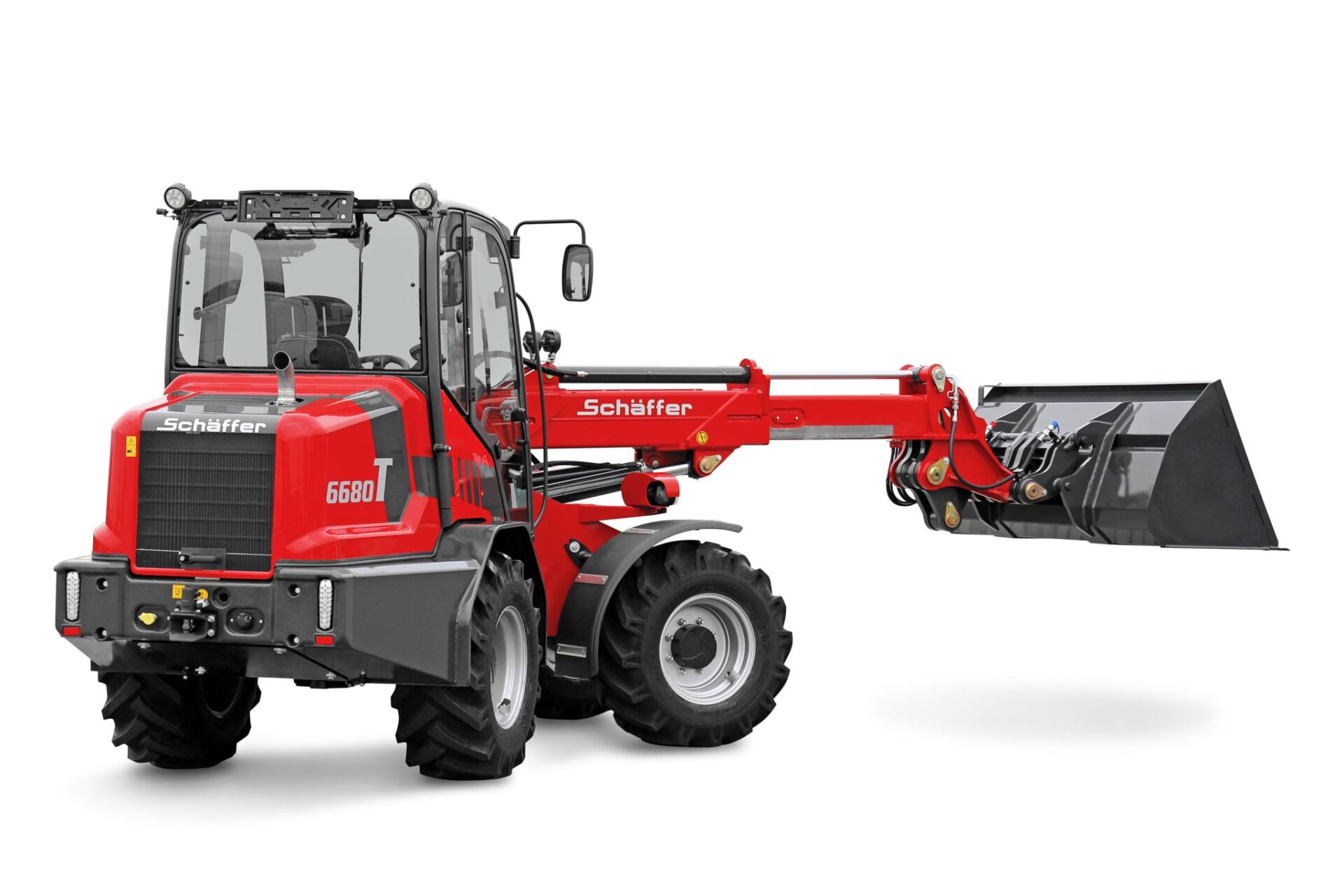

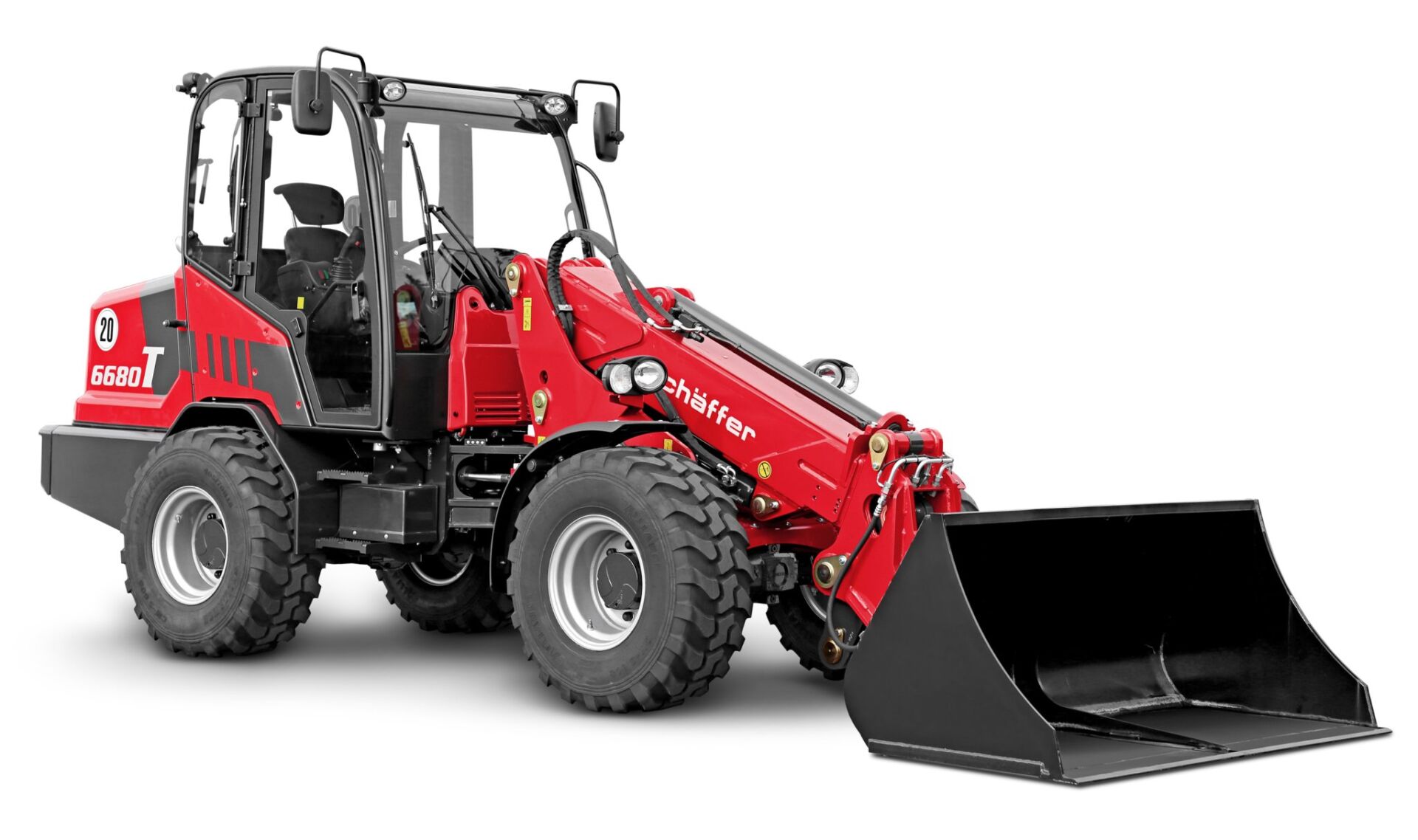

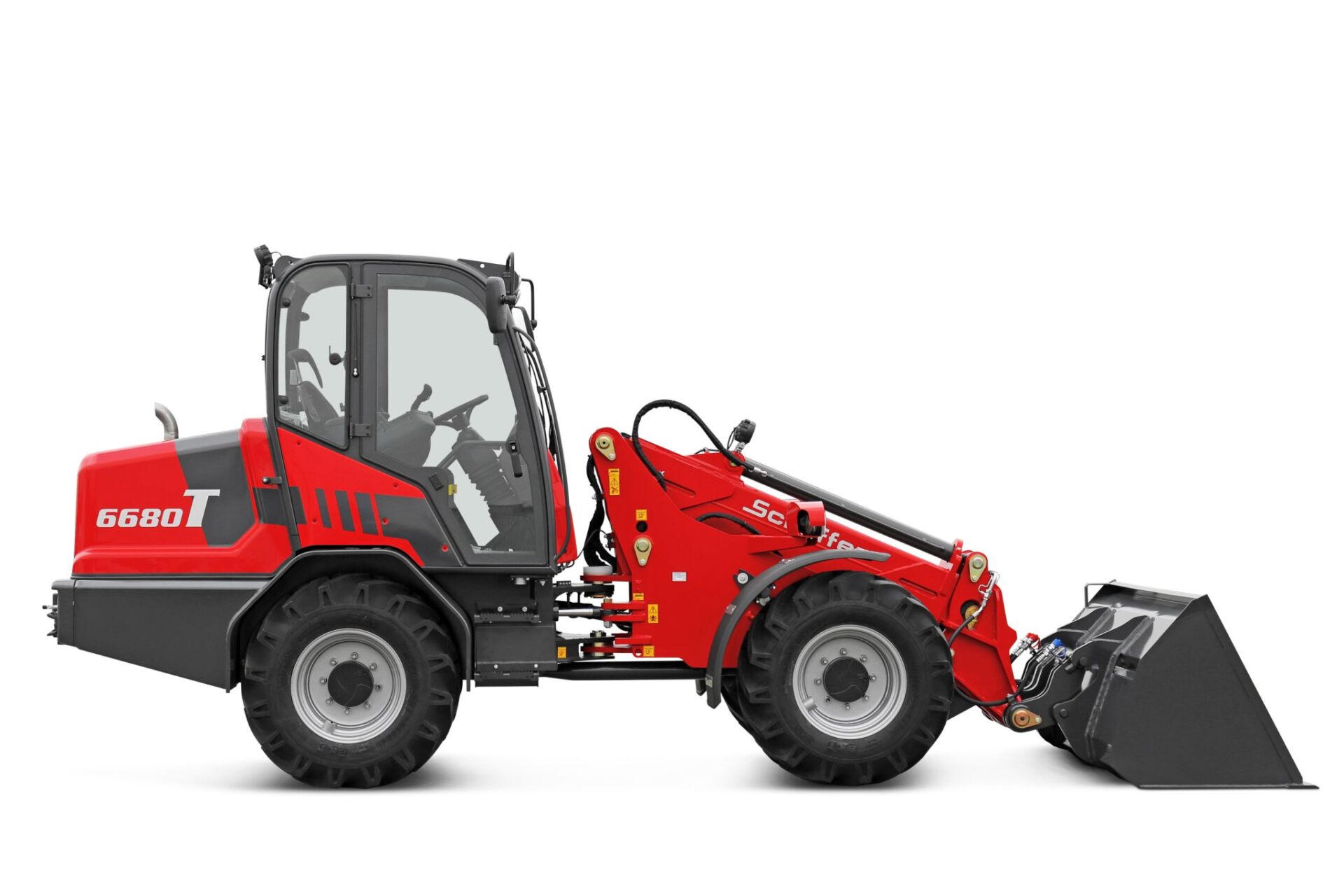

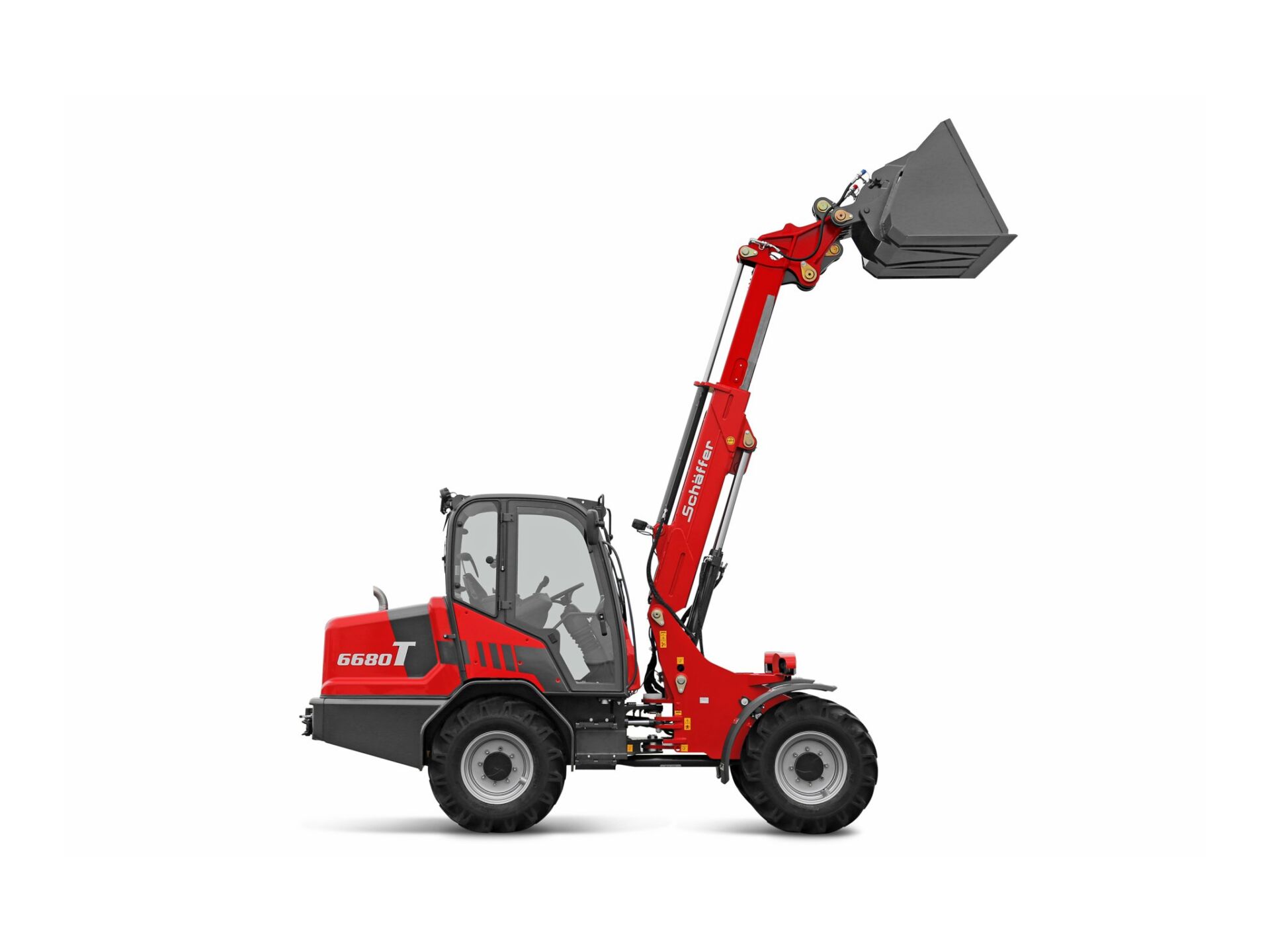

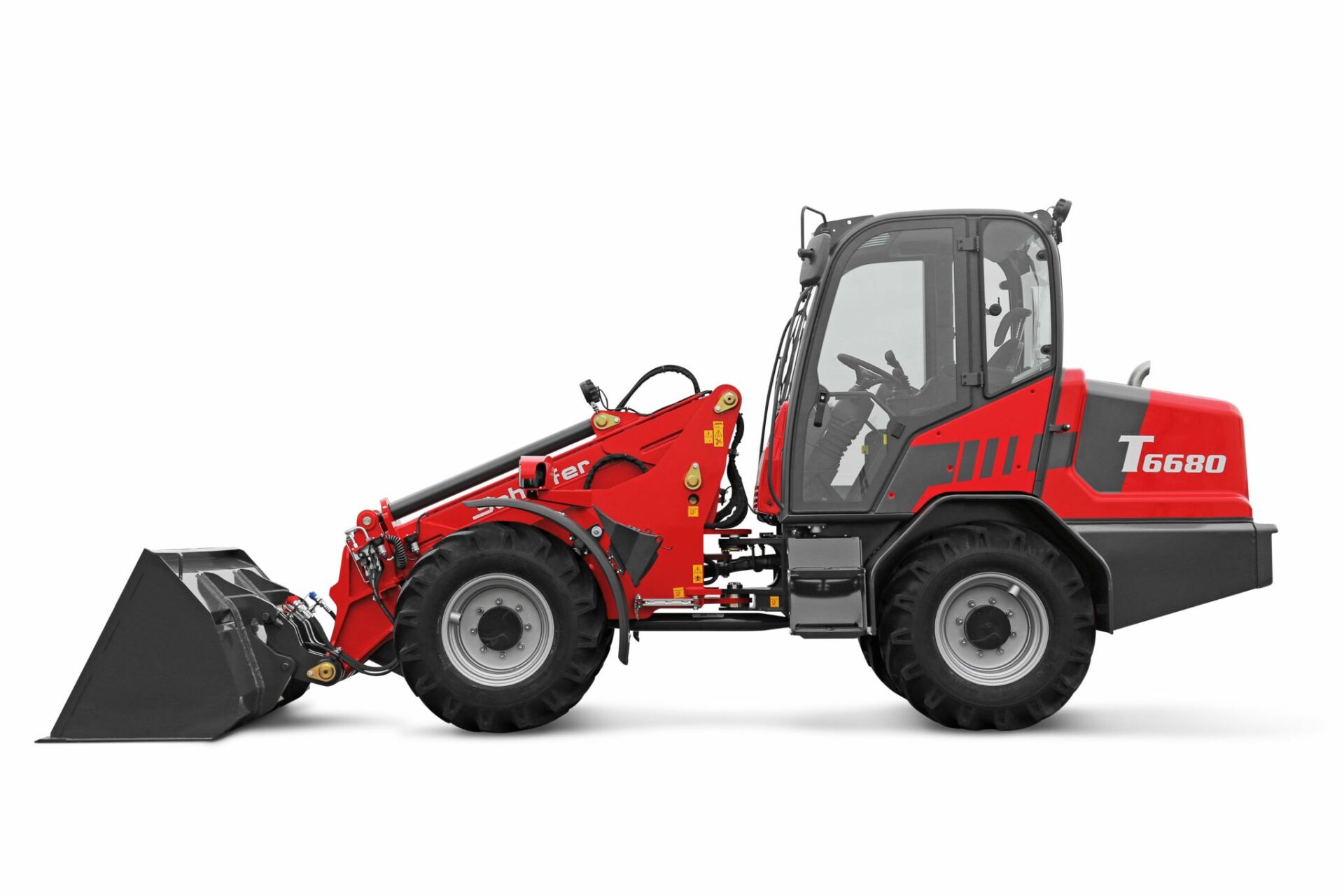

6680 T-3

TECHNICAL DATA

4-cylinder diesel engine Deutz TCD 2.9, 55 kW (75 HP)
DOC and DPF for compliance with Stage V emissions standards
Hydrostatic four wheel drive with automotive control
High-pressure drive HD-plus
Tyres 400/70-20 AS, offset -50
HTF (High Traction Force)
SPT (Schäffer Power Transmission)
ECO Mode
Hydraulic quick gear 20 km/h / 40 km/h including shock absorber switchable under load
HD planetary axles with self-locking differentials, 8 hole
Rear pendulum axle

Ferro-form sliding elements in the telescopic arm
Tool cylinder in the telescopic arm
Electric pressure relief of hydraulic couplings (on the steering tower and telescopic arm)
Combined oil cooler
Hydraulic fan drive
SCV-Plus-Cabin (Silence, Comfort, View)
Multiple disk brake, maintenance free; service and parking brake
Maintenance free articulation joint
LED working headlights: 2 x front, 1 x rear
Lighting system without ABE (General approval certificate) according to ordinance StVZO
Z-bar boom with parallel lift

Proportional control of the auxiliary connections and telescoping function on the joystick
Flow Sharing Working hydraulics standard / options: 88 / 106 / 105 l/min (Load Sensing)
Depressurised return
Steering column adjustable in length and angle
Hour meter, rev counter, fuel control lamp and temperature indicator
Adjustable armrest
Rear weight end plate and towing hitch
Main battery switch
2-stage air cleaner with highly efficient pre-cleaner system
Headstock type wheel loader with hydraulic tool lock
Load moment control according to DIN EN474-3

Engine
- Type: 4-cylinder diesel engine Deutz TCD 2.9
- Output: 55 kW (75 HP)
- Exhaust gas treatment / emission level: DOC, DPF / V
Tyres
- Standard tyres: 400/70-20 AS, ET-50
- Option I: 12.5/80-18 AS, ET-50
- Option II: 550/45-22.5 AS (A331), ET-50
Electric system
- Operating voltage: 12 V
Dimensions
- (A) Wheelbase: 2,450 mm
- (B) Chassis length: 5,050 mm
- (C) Overall length with standard bucket: 5,780 mm
- (D) Digging depth: 50 mm
- (E) Reach: 2,360 mm
- (F) Swivelling point, telescopic arm retracted: 3,950 mm
- (G) Loading height with pallet forks: 4,700 mm
- (H) Max. dumping height: 3,980 mm
- (I) Front end height: 1,750 mm
- (J) Dumping width: 815 mm
- (K) Seat height: 1,470 mm
- (L) Cab height / option: 2,630 mm / from 2,530 mm
- (M) Max. bucket pivot point: 4,950 mm
- (N) Overall width / option: 1,940 / 1,840 – 2,090 mm
- (O) Inner turning radius: 1,960 mm
- (P) Outer turning radius: 3,760 mm
- (Q) Outer radius with standard bucket: 4,400 mm

Drive
- Traction hydraulics: Hydrostatic-automotive
- Axles: HD axles, 8-hole rim; planetary final drive and automatic slip-control differential, swing axle at rear
- Speed / option: 20 kph (6680 T) / 40 kph (6680 T-2)
Brakes and steering
- Service braking system: Combined brake hydrostatic and multi-disc brake
- Parking brake: Multi-disc brake running in oil bath
- Steering: Fully hydraulic articulated steering
Tank capacity
- Fuel: 130 l
- Hydraulic oil: 120 l

Working hydraulics
- Delivery rate / option: 88 l/min / Flow Sharing 106 l/min / Load Sensing 105 l/min
- Operat. pressure: 220 bar
Weights
- Operating weight cabin incl. Original tyres, driver and standard bucket: 5,800 – 6,300 kg
- Lifting capacity: 3,100 kg
- Tipping load, straight, pallet fork acc. to ISO 14397: 3,820 kg
Sounds and vibration
- Sound pressure level LpA: 70 db(A)
- Sound power level guaranteed LwA: 101 db(A)
- Sound power level equivalent LwA: 101 db(A)
- Hand/arm vibration acc. to ISO 8041: <2,5 m/s²
- Total body vibration acc. to ISO 8041: <0,5 m/s²
