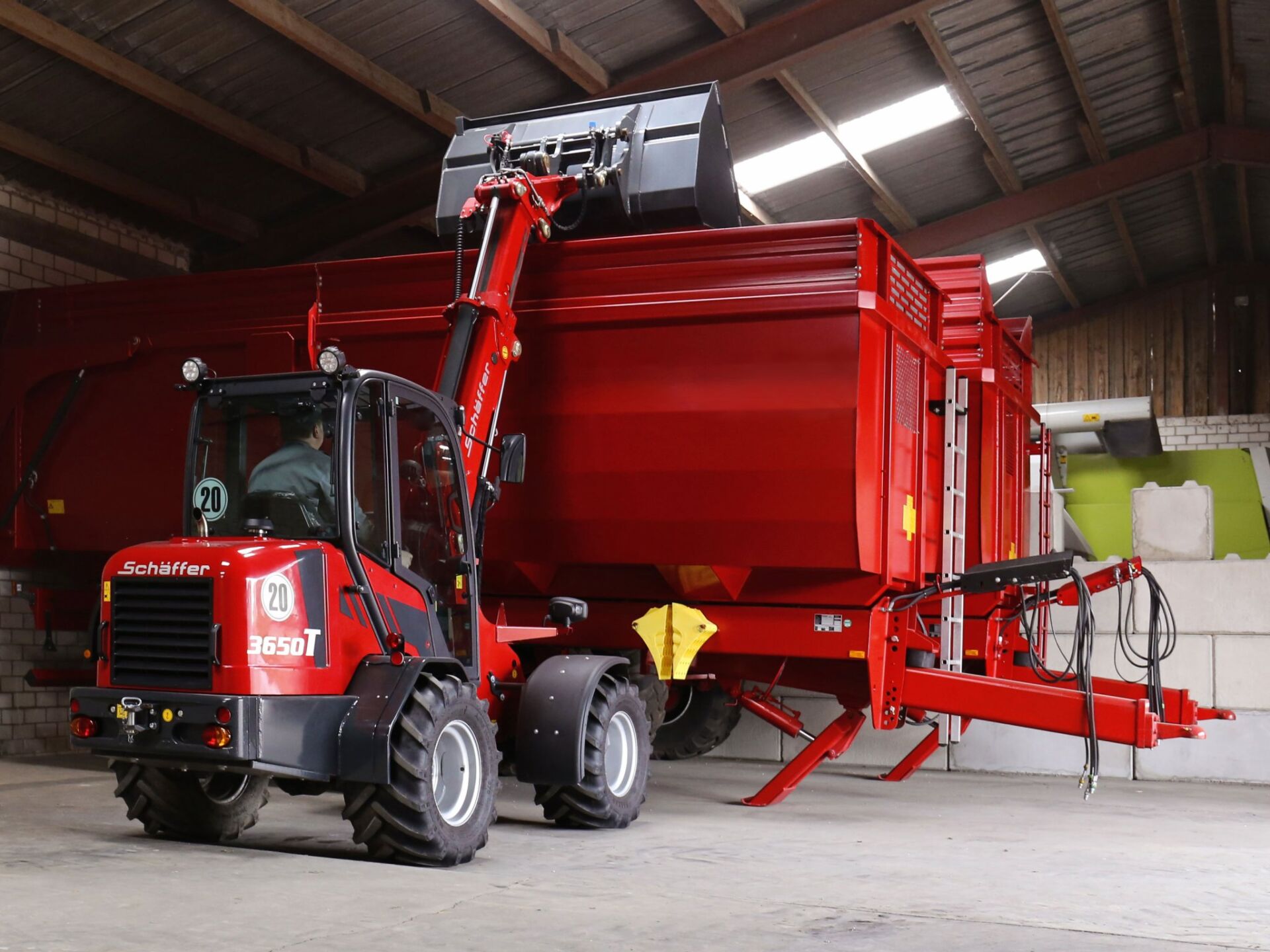

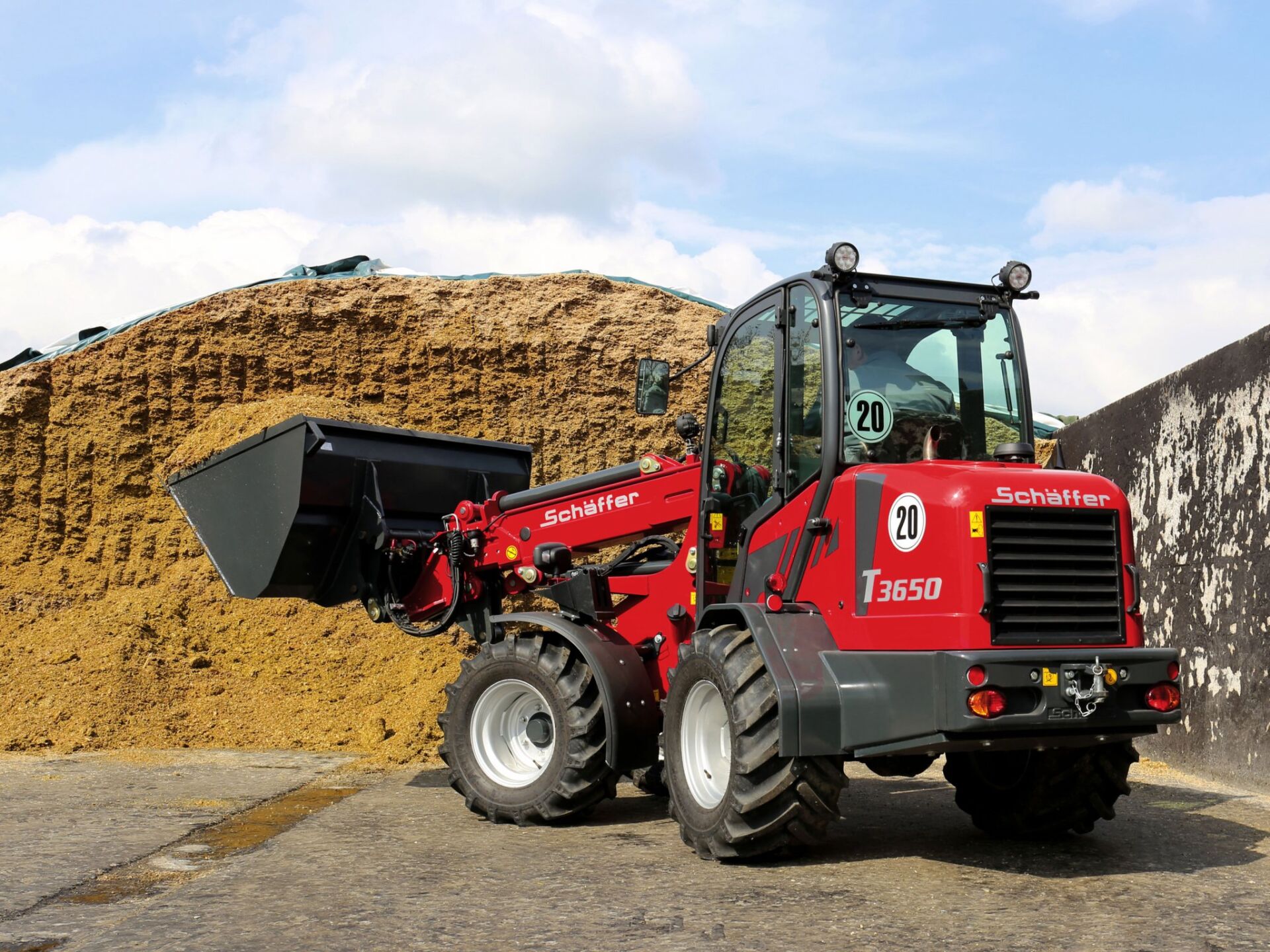

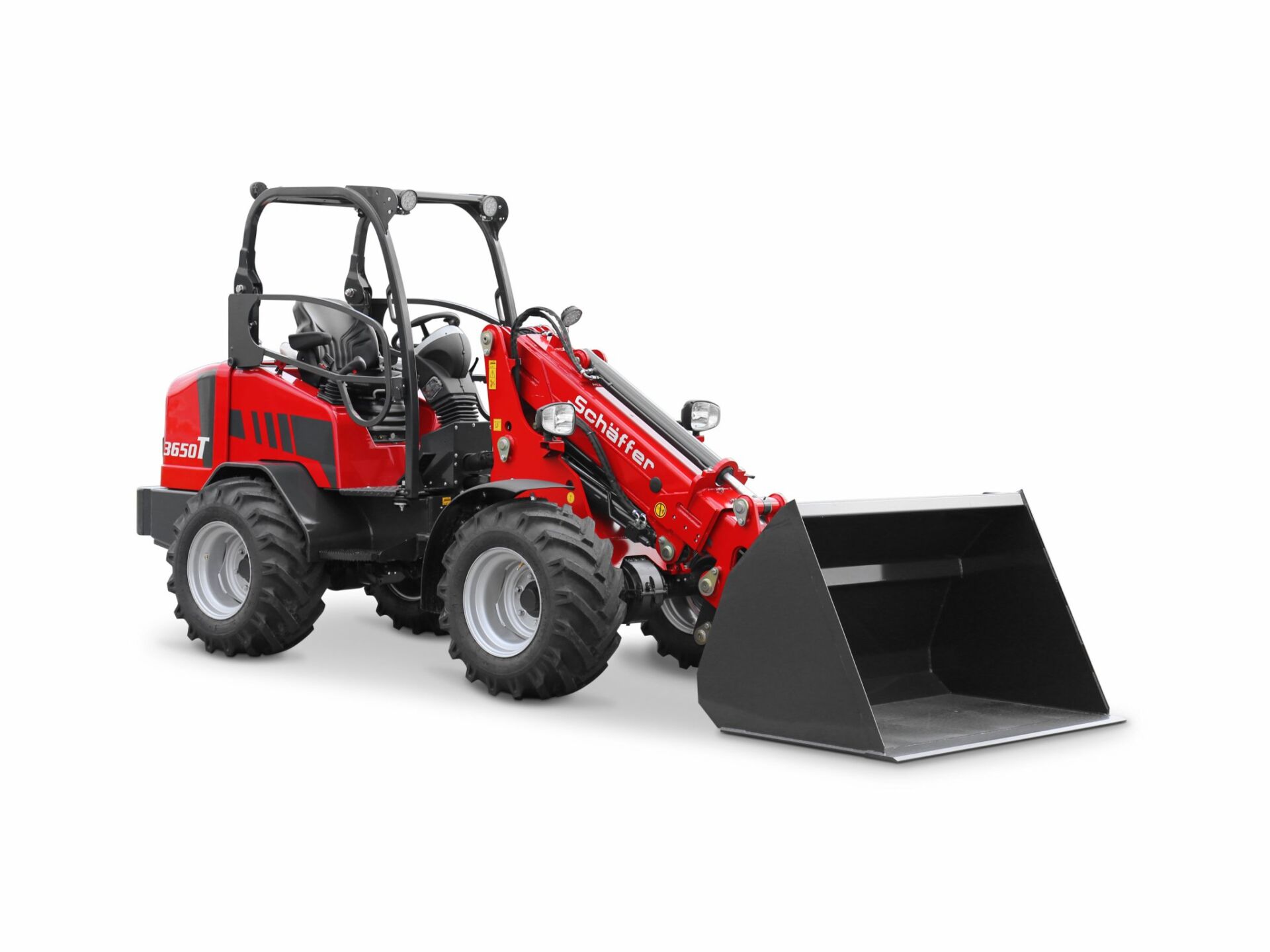

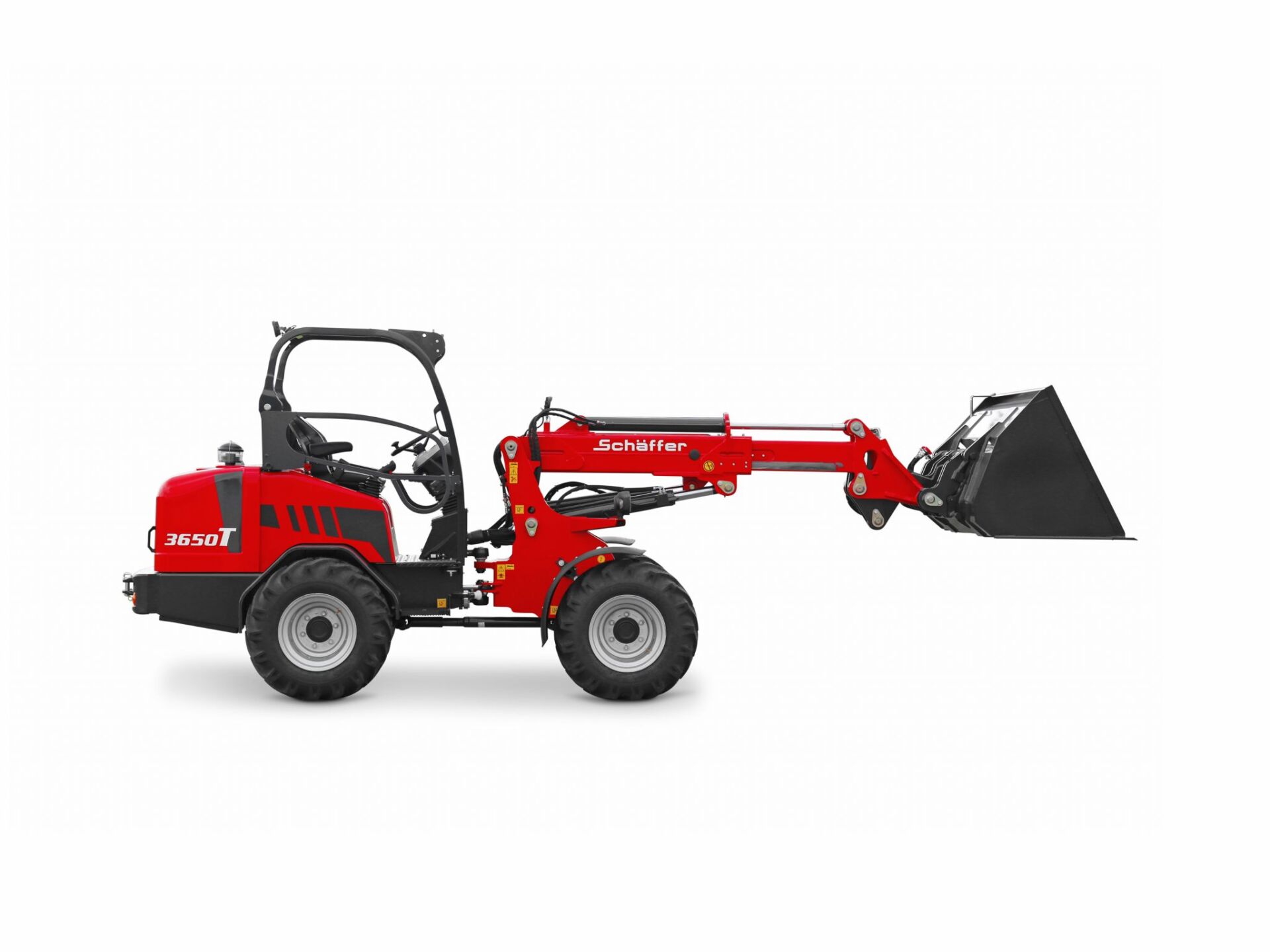

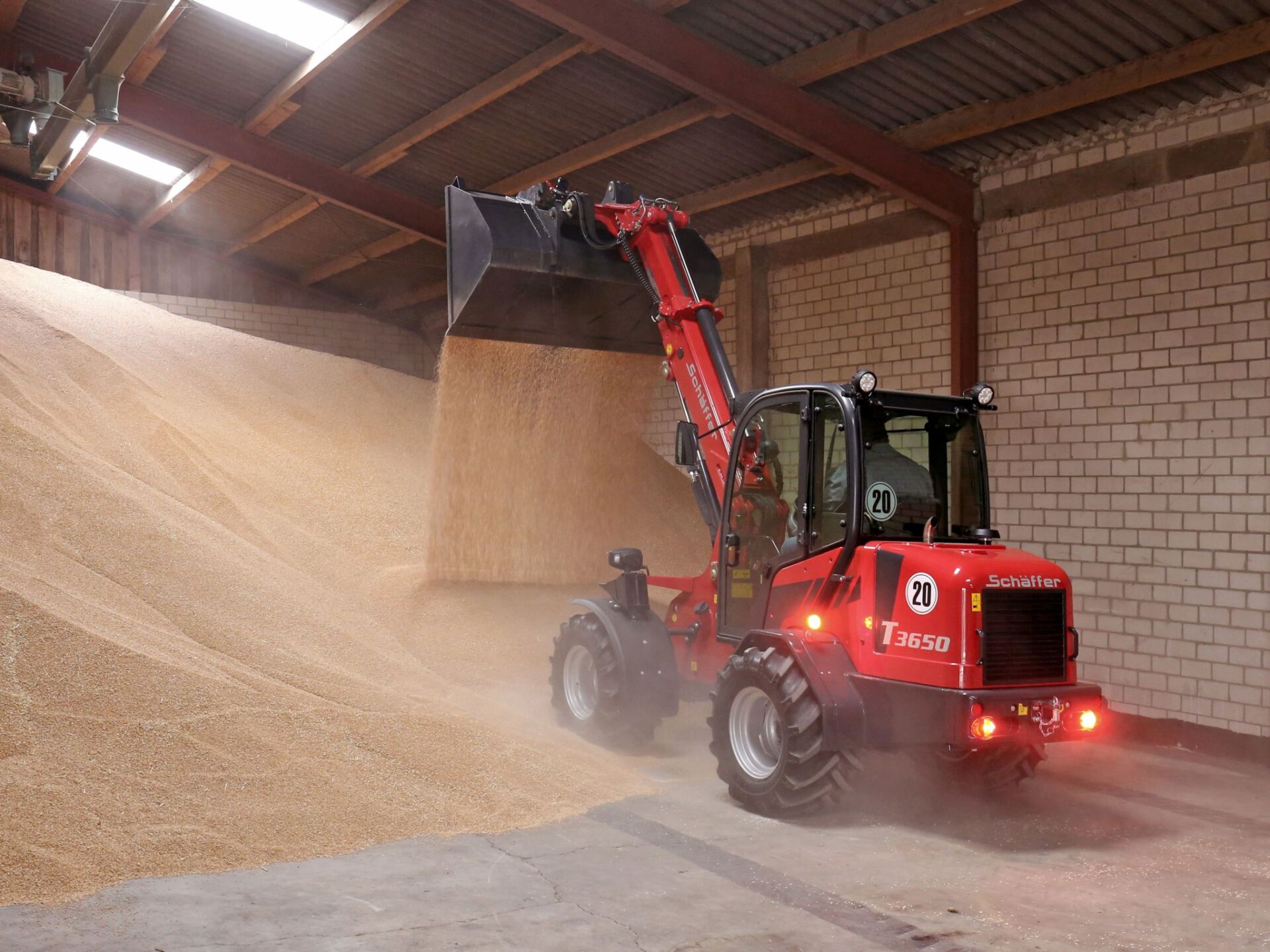

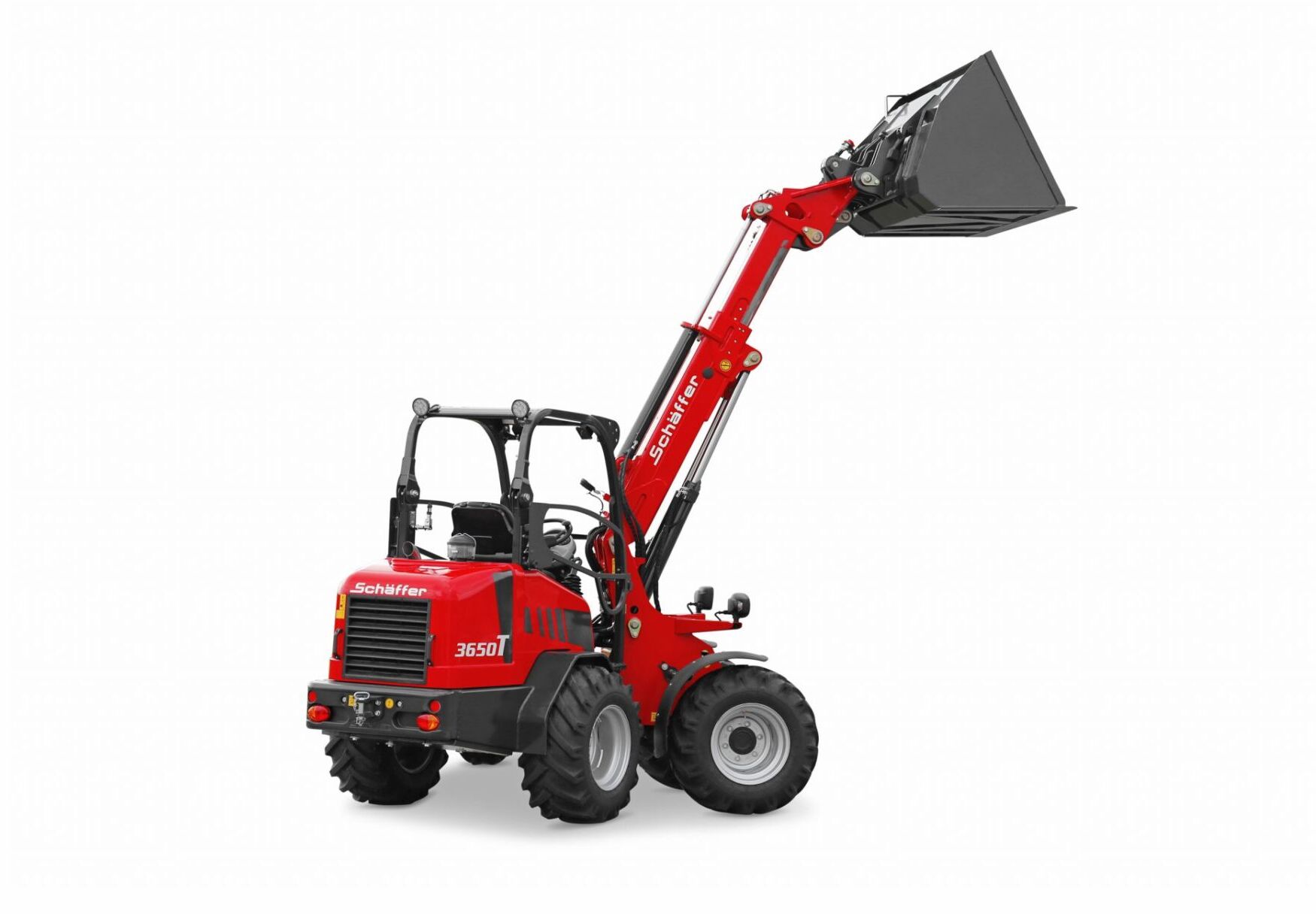

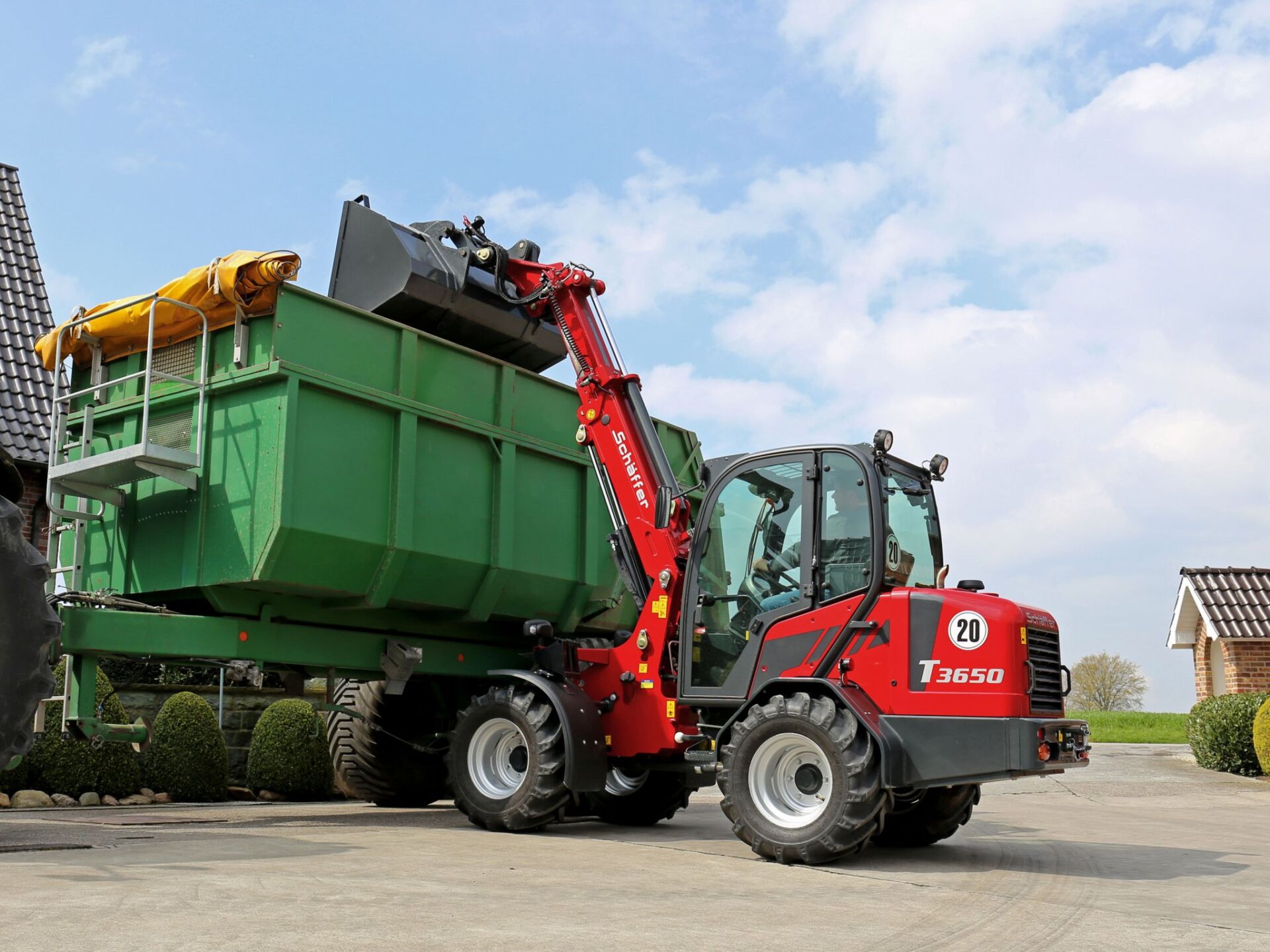

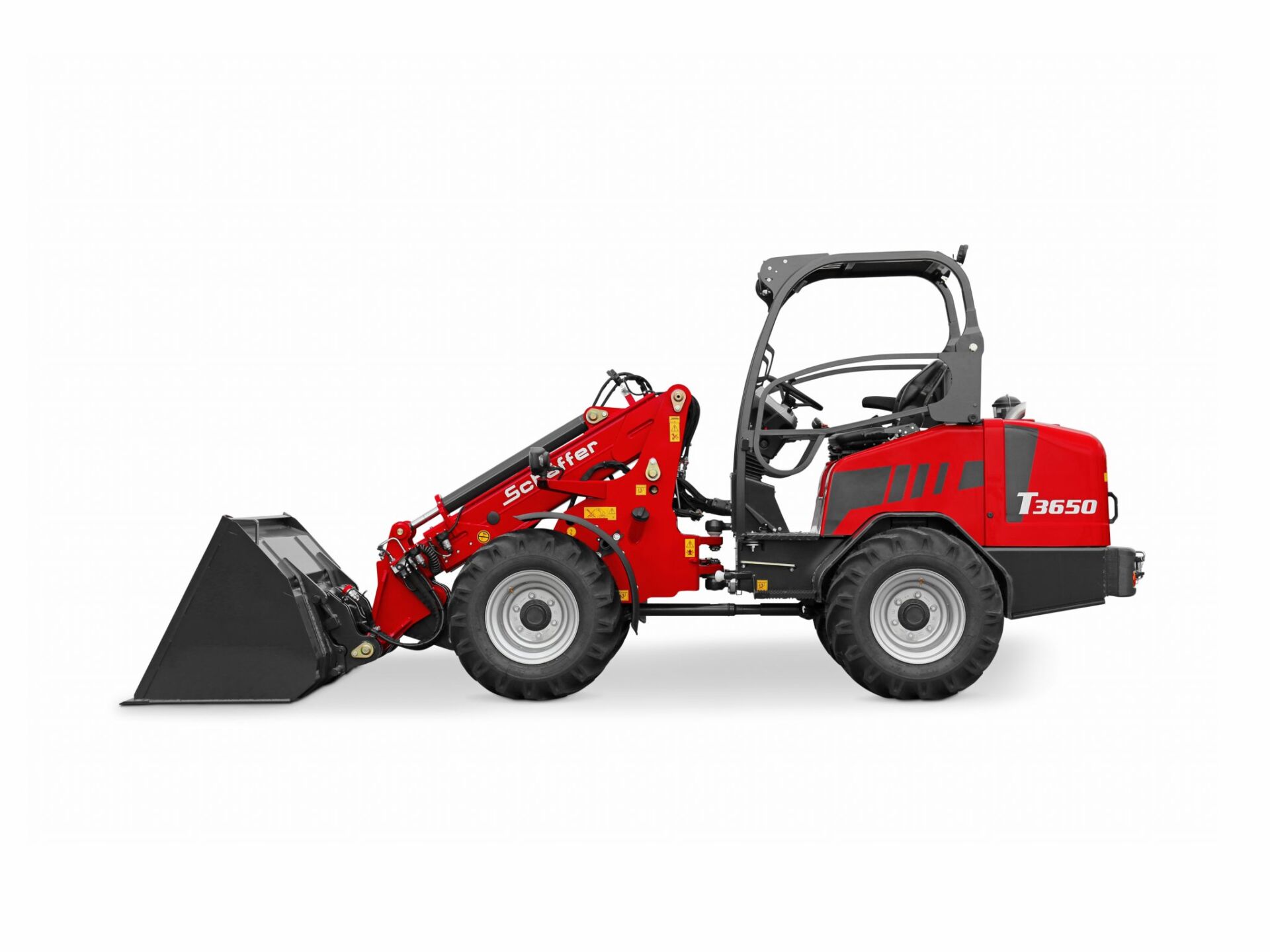

3650T

TECHNICAL DATA

Ferro-form sliding elements in the telescopic arm
Tool cylinder in the telescopic arm
Electric pressure relief of hydraulic couplings (on the steering tower and telescopic arm)
Combined oil cooler
Multiple disk brake, maintenance free; service and parking brake
Maintenance free articulated pendulum joint
Restraining system for protection roof
LED working headlights: 2 x front, 1 x rear
Z-bar boom with parallel lift
Mechanically operated additional controller

Engine
- Type: 3-cylinder diesel engine Kubota D1803-CR-T (I)
- Capacity / option: 37 kW (50 HP) / 42 kW (58 HP)
- Exhaust gas treatment / emission level: DOC, DPF / V
Tyres
- Standard tyres: 15.0/55-17 AS, ET+85
- Option I: 425/55R17
- Option II: 440/50-17
- Option III: 33×15.5-16.5 SKD, ET+35
Electric system
- Operating voltage: 12 V
Dimensions
- (A) Wheelbase: 1,920 mm
- (B) Chassis length: 4.070 mm
- (C) Overall length with standard bucket: 4,735 mm
- (D) Digging depth: 150 mm
- (E) Reach: 1,980 mm
- (F) Swivelling point, telescopic arm retracted: 3,180 mm
- (G) Loading height with pallet forks: 3,580 mm
- (H) Max. dumping height: 3,010 mm
- (I) Front end height: 1,600 mm
- (J) Dumping width: 890 mm
- (K) Seat height: 1,180 mm
- (L) Protective roof height: 2,290 mm
- (L) Cab height: 2,210 mm
- (M) Max. bucket pivot point: 3,850 mm
- (N) Overall width / option: 1,420 / 1,510 – 1,730 mm
- (O) Inner turning radius: 1,290 mm
- (P) Outer turning radius: 2,710 mm
- (Q) Outer radius with standard bucket: 3,060 mm

Drive
- Traction hydraulics: Hydrostatic-automotive
- Speed / option: 0 – 20 km/h in 2 gears switchable under load / 0 – 30 km/h
- Axles / option: Original Schäffer axles. 6 wheel nut rim / automatic slip-control differential
Brakes and steering
- Service braking system: Combined brake hydrostatic and multi-disc brake
- Parking brake: Multi-disc brake running in oil bath
- Steering: Fully hydraulic articulated pendulum steering
Tank capacity
- Fuel: 55 l
- Hydraulic oil: 48 l

Working hydraulics
- Delivery rate / option: 51 l/min / 60 l/min
- Operat. pressure: 220 bar
Weights
- Operating weight protective roof incl. Original tyres, driver and standard bucket: 3,600 kg
- Operating weight cabin incl. Original tyres, driver and standard bucket: 3,800 kg
- Lifting capacity: 1,950 kg
- Tipping load, straight, pallet fork acc. to ISO 14397: 1,710 kg
Sounds and vibration
- Sound pressure level LpA: 84 db(A)
- Sound power level guaranteed LwA: 101 db(A)
- Sound power level equivalent LwA: 101 db(A)
- Hand/arm vibration acc. to ISO 8041: <2,5 m/s²
- Total body vibration acc. to ISO 8041: <0,5 m/s²
