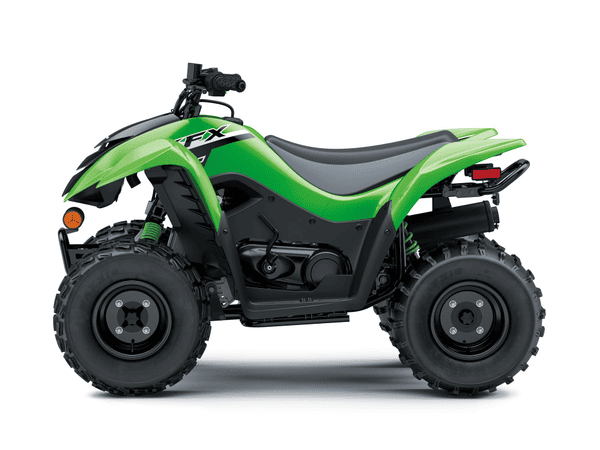

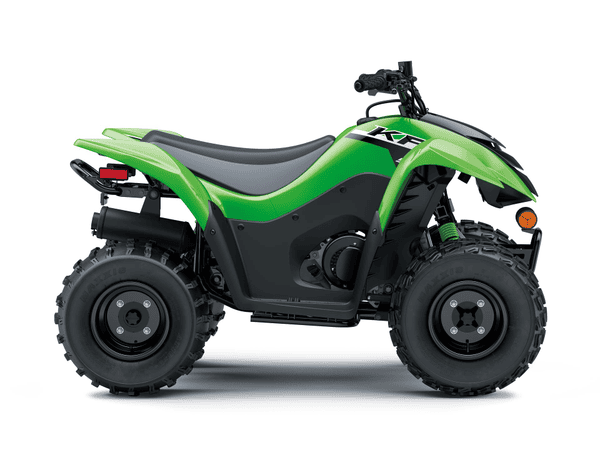

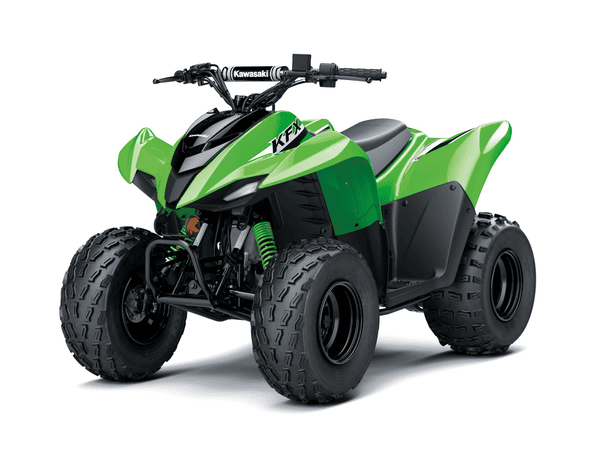

KFX90 – 2024
Four wheel fun starts with KFX90. Get the kids outdoors and ready to ride on the KFX90 ATV line with proportionate power and size for riders ages 10 and older. KFX90 ATVs let kids take on more challenging tracks and bigger adventures with an 89.9cc engine and sporty suspension.
Colour
Lime Green
SPECIFICATIONS:
| Engine type | Air-cooled, 4-stroke, single-cylinder |
|---|---|
| Compression ratio | 10.0:1 |
| Valve system | SOHC, 2 valves |
| Bore x stroke | 47.0 x 51.8 mm |
| Displacement | 90 cm³ |
| Fuel system | Carburettor |
| Lubrication | Forced lubrication, wet sump with oil cooler |
| Starting System | Electric & kick |
| Ignition System | Battery & Coil (transistorised ignition) |
| Maximum power | 4.8 kW {7 PS} / 7,500 rpm |
|---|---|
| Maximum torque | 6.6 N•m {0.6 kgf•m} / 5,500 rpm |
| Transmission | CVT, centrifugal clutch |
| Primary drive | Belt drive torque converter (CVT) |
| Final drive | Chain |
| Frame type | Double-cradle, high-tensile steel |
|---|---|
| Rake | 3.8 ° |
| Trail | 15 mm |
| Wheel travel front | 71 mm |
| Wheel travel rear | 74 mm |
| Tyre, front | AT 18 x 7-8 |
| Tyre, rear | AT18 x 9-8 |
| L x W x H | 1,425 x 900 x 925 mm |
| Steering angle L/R | 30° / 30° |
| Wheelbase | 965 mm |
| Ground clearance | 100 mm |
| Fuel capacity | 5.3 liter |
| Seat height | 650 mm |
| Curb mass | 122 kg |
| Parking Brake | Mechanical drum |
|---|---|
| Brakes, front | Mechanical drum |
| Brakes, rear | Hydraulic disc |
| Suspension, front | Single A-Arm |
| Suspension, rear | Swingarm |
