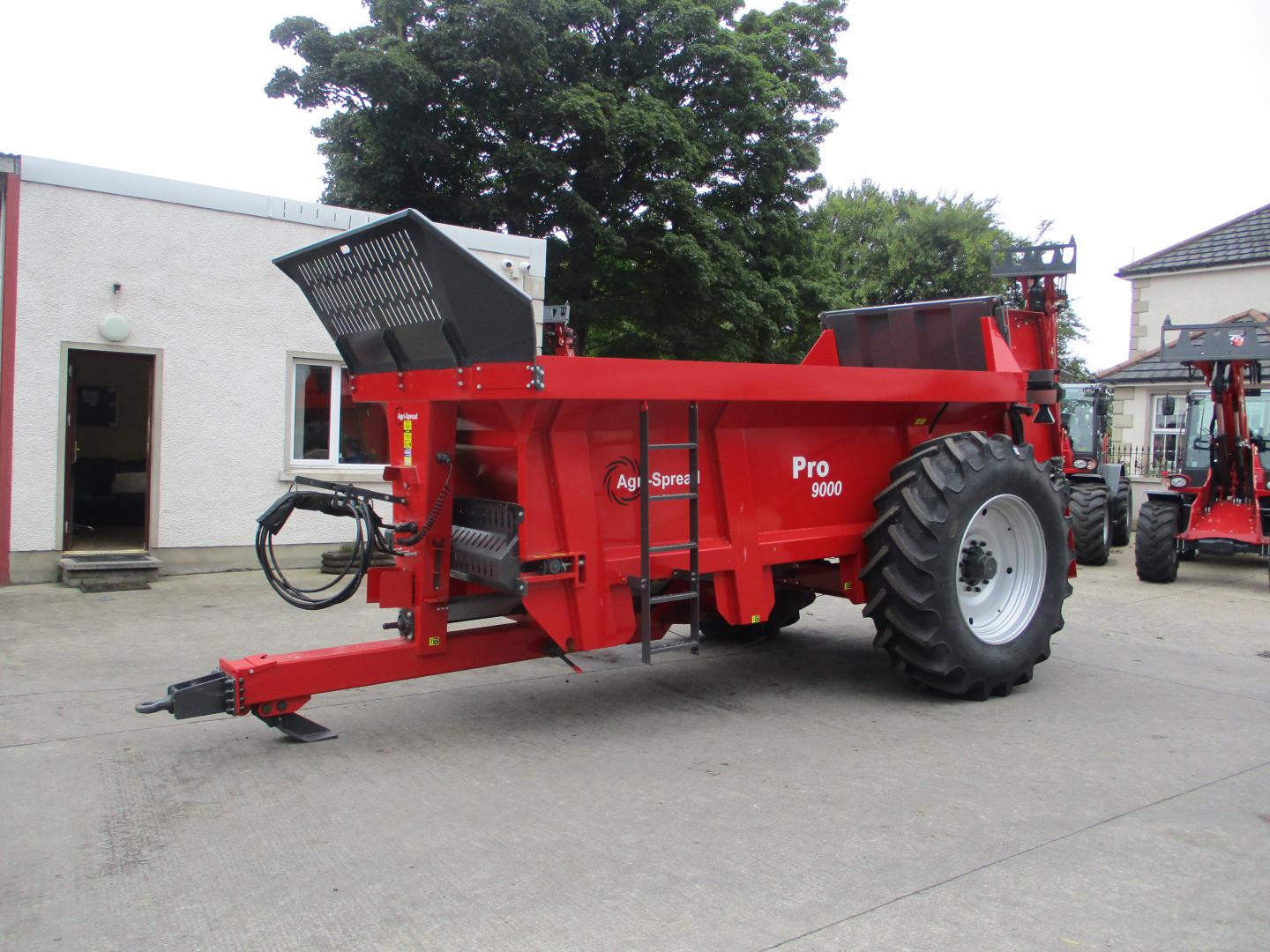

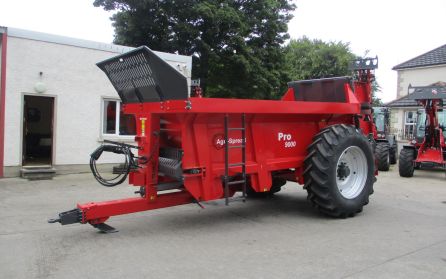

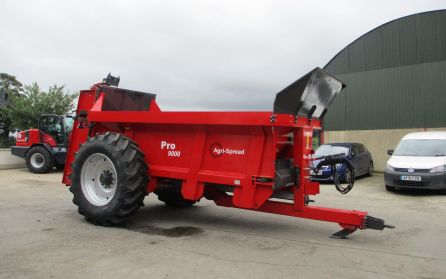

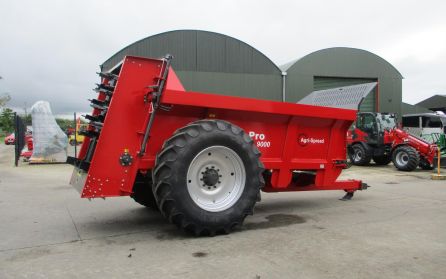

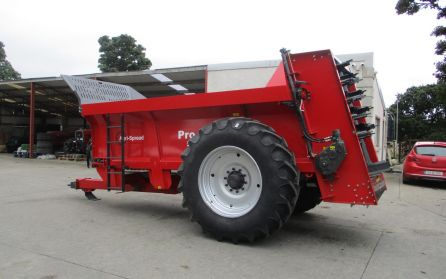

AGRI-SPREAD 9 TON REAR DISCHARGE SPREADER
- The monocoque body design enables a consistent flow of material to the beaters ensuring that an even and accurate spread pattern is obtained no mater the type of product

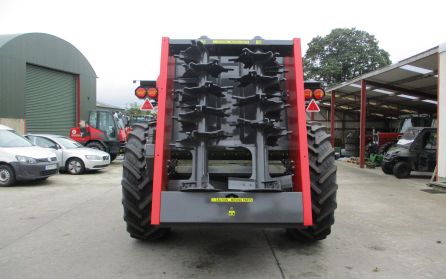

- The in-house beater design use a reversible Boran tip, high tensile stepped spiral pattern and heavy duty S355 Tube to offer the most robost twin beater on the market.
- Each motor is dynamically balanced at the Agri-Spread factory
- The beaters rotate on the 1000 PTO gearbox at a speed of 420rpm
- Heavy duty 16mm Grade 80 Marine chain is used on the hydraulically driven floor design. A preset cross flow relief valve is used on the floor drive to eliminate damage to the floor drive mechanism due to foreign objects.
- Agri-Spread use a range of axles to optomise ground clearance, using 406 x 120 s-cam brakes for effective braking on road and field use while running empty or full
- Large diameter wheels as standard across the range of models offer excellent flotation in all types of conditions
